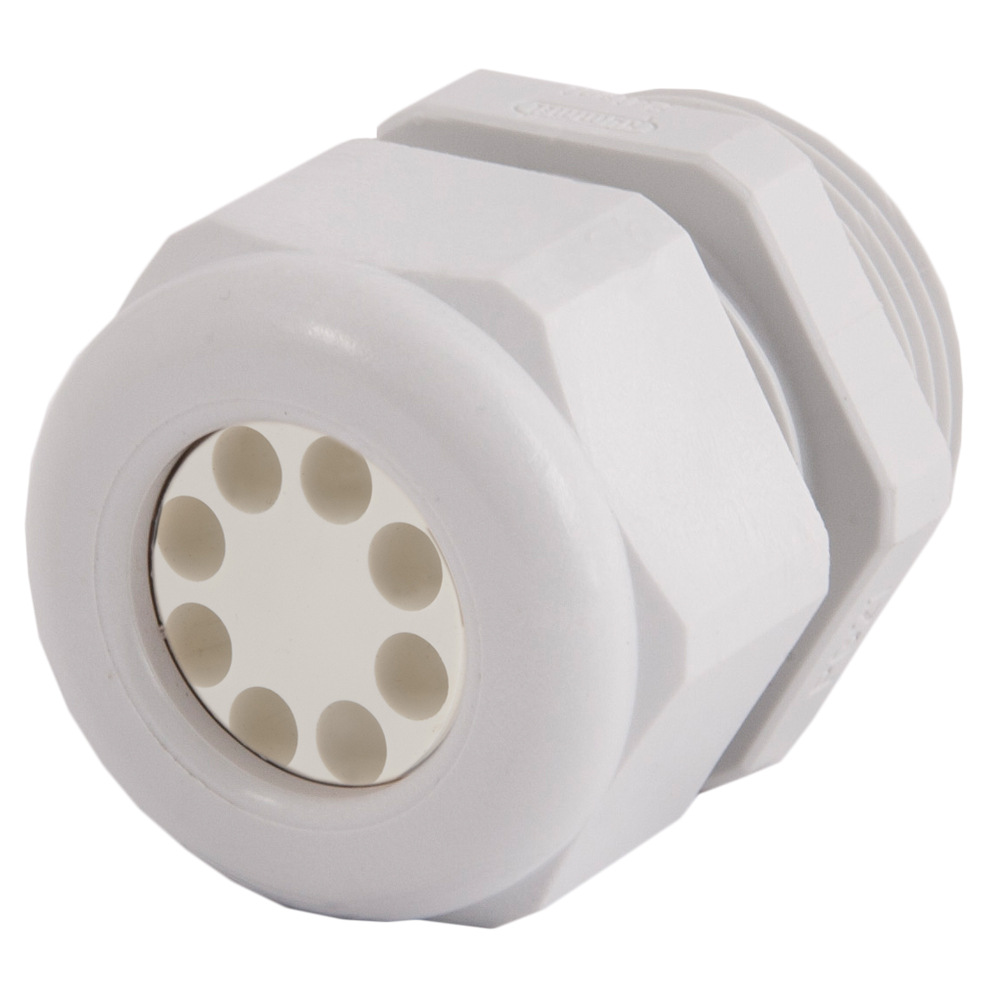

Nylon Multi-Hole Strain Relief Fitting Metric

CD63M1-GY

Gray Nylon Standard Strain Relief Fitting M63 x 1.5

Thread Type: M63 x 1.5

Locking Nut & O-Ring Sold Separately

Sealcon # CD63M1-GY
Color Gray
No. of Holes 8
Diameter of Holes .39" (10 mm)
Insert Only 1.089.4800.19
Hummel # 1.597.6300.50
Hummel
Material Nylon

Body Length (B)
Thread Length (D)

Features

  • Flame protected - V0 Rated according to UL 94Halogen- and Phosphorous free materials
  • Safety - Ratchet to prevent Dome from coming loose under vibration
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE


  • This Nylon Strain Relief (Cable Gland) with M63 x 1.5 Thread will provide your application with a product made of exceptional quality

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

    Technical Data

    Materials

    • Fittings: Nylon 6/6
    • Form Seal:
    • Optional O-Ring: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic

    Available Colors

    • Black (RAL 9005)
    • Gray (RAL 7035)
    • Blue (RAL 5012) - upon request

    Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.

    UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).

    *Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
