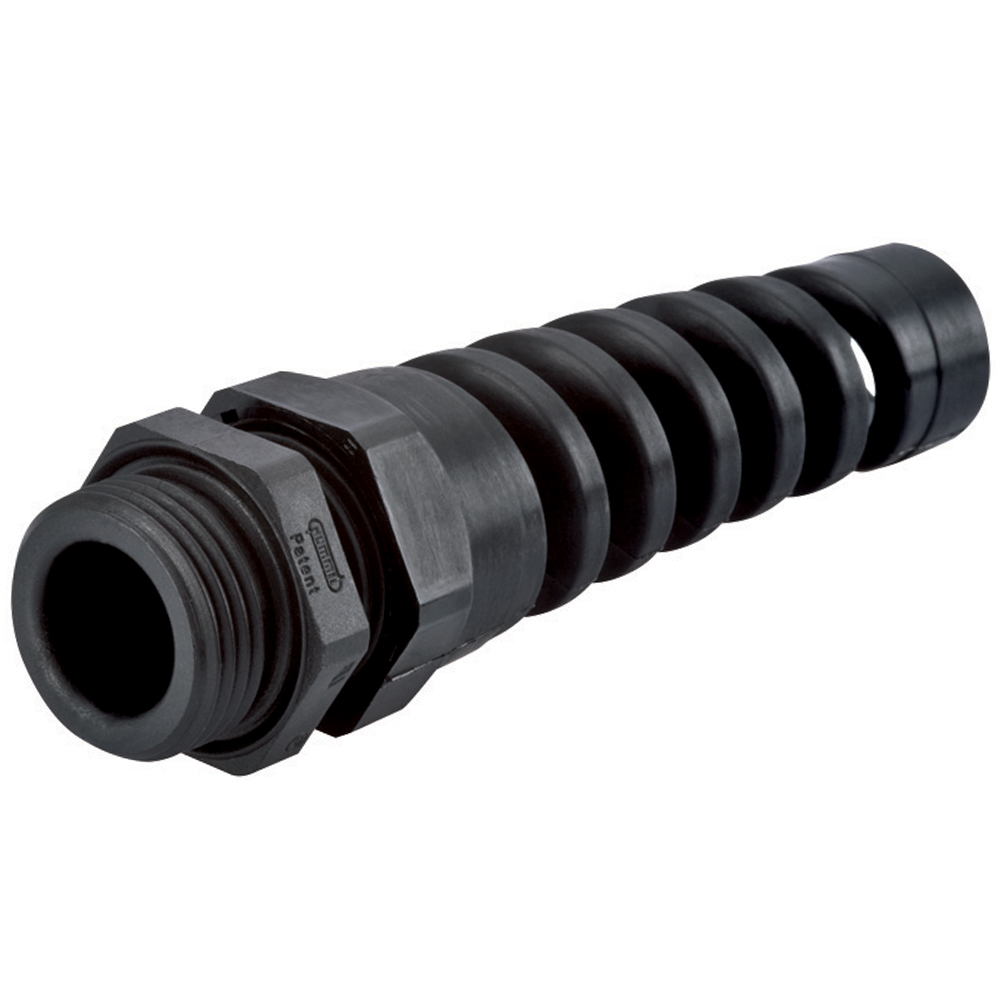

Black Nylon Standard Strain Relief Fitting M16 x 1.5
Thread Type: M16 x 1.5
Locking Nut & O-Ring Sold Separately
Sealcon # CF16M4-BK
Color Black
No. of Holes 2
Diameter of Holes .07" (1.7 mm)
Insert Only 1.089.0903.19
Hummel # *Custom
Hummel HSK-K-Flex
Material Nylon
Body Length (C)
.87" (22 mm)
Thread Length (D)
.59" (15 mm)
Wrench Flat (F1/F)
.75" (19 mm) / .87" (22 mm)
Features
This Nylon Strain Relief (Cable Gland) with M16 x 1.5 Thread will provide your application with a product made of exceptional quality
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
Technical Data
Materials
- Fittings: Nylon 6/6
- Form Seal: Elastomer
- Optional O-Ring: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Protection
IP 65/IP 68 possible with ideal fit, only with optional O-Ring
Operating Temperature
-40°C to 100°C (-40°F to 212°F)
Available Colors
- Black (RAL 9005)
- Gray (RAL 7035)
- Blue (RAL 5012) - upon request
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).
*Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
Approvals
RoHS Compliance
Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
Certified European Approval
Canadian Standard Association
Registered Underwriters Laboratories
German Lloyd
EAC
V0 UL94 Rated / Approved
