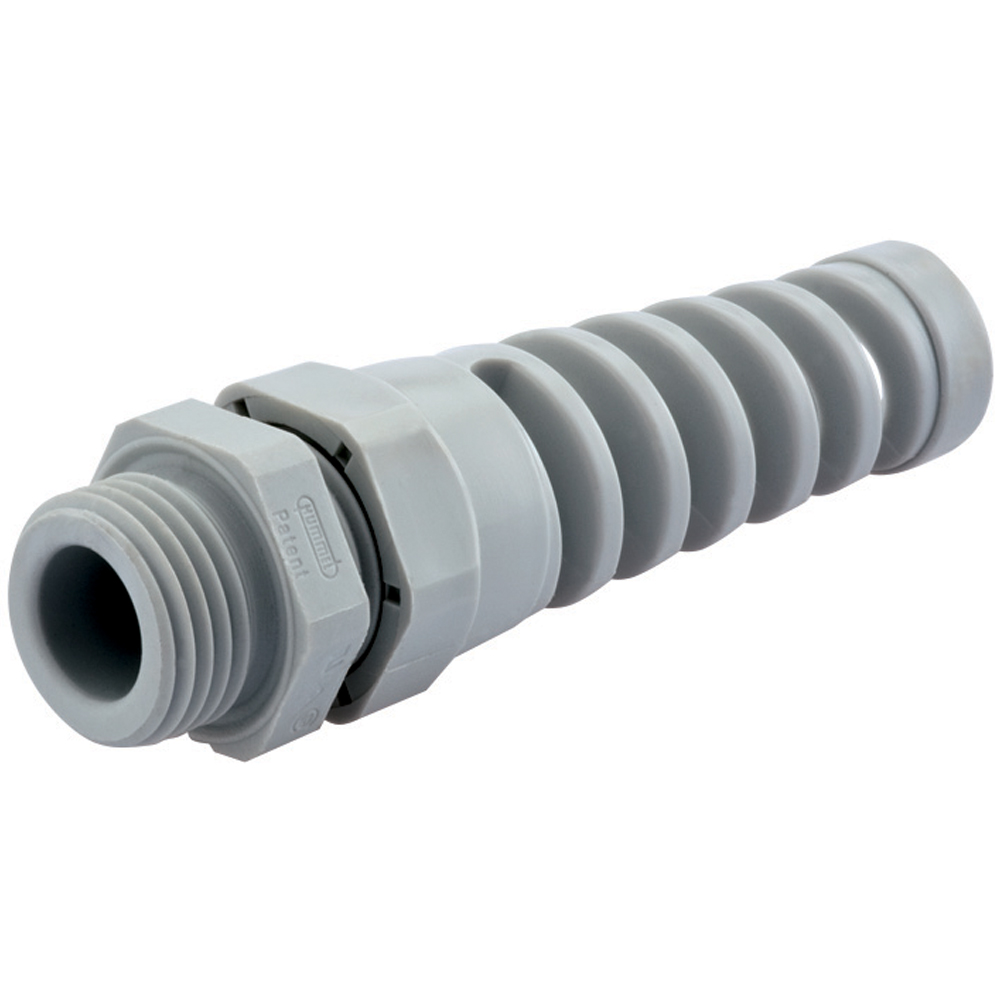

Gray Nylon Standard Strain Relief Fitting M16 x 1.5
Thread Type: M16 x 1.5
Locking Nut & O-Ring Sold Separately
Sealcon # CF17MP-GY
No. of Holes Solid Plug
Insert Only 1.089.1199.19
Hummel # * Custom
Body Length (C)
1.22" (31 mm)
Thread Length (D)
.55" (14 mm)
Wrench Flat (F1/F)
1.3" (33 mm)
This Nylon Strain Relief (Cable Gland) with M16 x 1.5 Thread will provide your application with a product made of exceptional quality
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
- Fittings: Nylon 6/6
- Form Seal: Elastomer
- Optional O-Ring: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
IP 65/IP 68 possible with ideal fit, only with optional O-Ring
-40°C to 100°C (-40°F to 212°F)
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
UL F1 UV Stable Rating for outdoor applications (Black Nylon version only).
*Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
