Sealcon #: S7.001.906.103
M23 Signal Connector Insert Configurations
Hummel: M 23 Signal Insert, 6-pole
Hummel #: 7.001.906.103
Insert with Solder Contacts compatible with:
Crimp pin 2mm part:7.010.902.001
Crimp socket 2mm part:7.010.902.002
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Number of Positions: 6
Number of Contacts: 6
Contact Ø (mm): 2
Nominal Current [A]: 20
Nominal Voltage [V~]: 300
Test Voltage (Breakdown Voltage) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3 INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.906.104
Insert 6-pole 6 x 2 mm Connection type soldering
number of poles 6

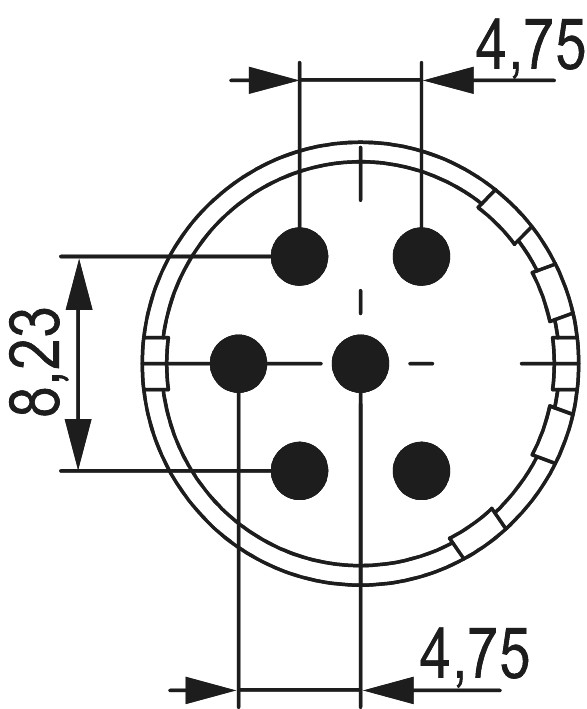

Pole picture 6
Direction of rotation default
Mission Rifle
Color contact insert white
Material insulating body PA6, PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.906.107
Insert 6-pole 6 x 2 mm Connection type PCB assembly
number of poles 6
Pole picture 6
Direction of rotation default
Solder length 3.5mm
Mission Pen
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.906.108
Insert 6-pole 6 x 2 mm Connection type PCB assembly
number of poles 6
Pole picture 6
Direction of rotation default
Solder length 10mm
Mission Rifle
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.906.118
Insert 6-pole 6 x 2 mm Connection type PCB assembly
number of poles 6
Pole picture 6
Direction of rotation default
Solder length 17mm
Mission Rifle
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.906.127
Insert 6-pole 6 x 2 mm Connection type PCB assembly
number of poles 6
Pole picture 6
Direction of rotation default
Solder length 10mm
Mission Pen
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.906.137
Insert 6-pole 6 x 2 mm Connection type PCB assembly
number of poles 6
Pole picture 6
Direction of rotation default
Solder length 17mm
Mission Pen
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 2500V~
Insulation resistance signal > 10^10 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.003.906.101
Insert 6-pole 6 x 2 mm Connection type Crimping
number of poles 6
Pole picture 6
Direction of rotation default
Mission Pen
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)
suitable signal contacts 7010902001S7.003.906.102
Insert 6-pole 6 x 2 mm Connection type Crimping
number of poles 6
Pole picture 6
Direction of rotation default
Mission Rifle
Color contact insert white
Material insulating body PA6,
PBT
Number of contacts signal 6
Contact Ø signal 2mm
Rated current signal 20A
Rated voltage at pollution level 3 signal 300V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)
suitable signal contacts 7010902002
