8-Pole 4+3+PE Socket Insert with dip solder contacts length 10mm | S7.001.943.108

Sealcon #: S7.001.943.108

Socket (Female) Insert with dip solder contacts length 10mm

Hummel: M 16 Inserts, 4+3+PE 320V

Hummel #: 7.001.943.108

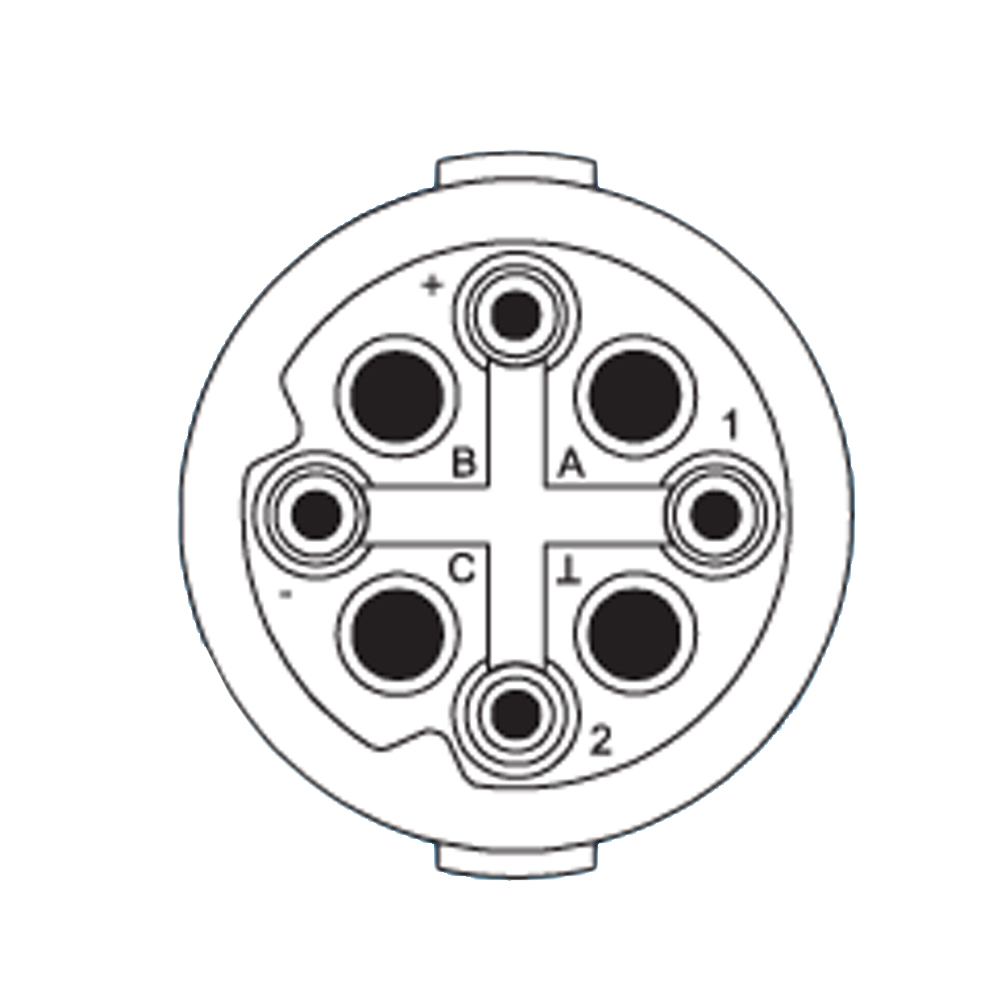

M16 Connector 8-Pole [4+3+PE/Potential Earth (Grounding)] Socket (Female) Insert with dip solder contacts length 10mm

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Electrical Data PDF

Number of Positions: 4 + 3 +PE / 320V

Number of Contacts: 4 | 4

Contact Ø (mm): 0.8 | 1.6

AWG [mm²]: 0.08 - 0.34 | 0.34 - 1.5

Nominal Current [A]: 5 | 16

Nominal Voltage [V~]: 160 | 320

Test Voltage (Breakdown Voltage) [V~]: 1500 | 2500

Insulation Resistance [MΩ]: > 10¹⁰

Max. Contact Resistance [mΩ]: 3

UL Certified
