M23 Signal Inserts | S7.003.919.101

Sealcon #: S7.003.919.101

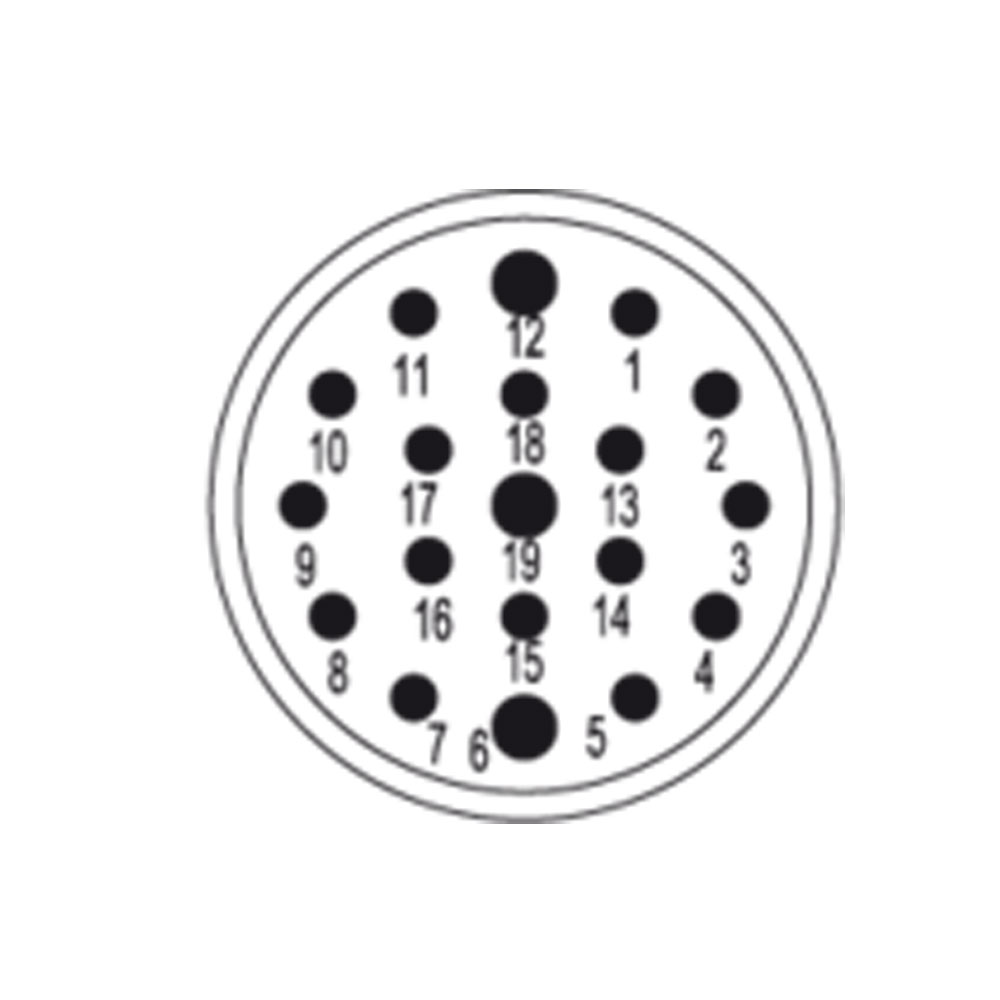

Insert 19-pole
Hummel: M 23 Signal Insert, 19-pole
Hummel #: 7.003.919.101

Insert – without Contacts

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page
  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.919.103
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmNumber of Positions: 19 | (16 + 3)
    Number of Contacts: 16 | 3
    Contact Ø (mm): 1 | 1.5
    Nominal Current [A]: 8 | 10
    Nominal Voltage [V~]: 100
    Test Voltage (Breakdown Voltage) [V~]: 1500
    Insulation Resistance [MΩ]: > 106
    Max. Contact Resistance [mΩ]: 3
    S7.001.919.104
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.107
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.108
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.113
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.114
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.118
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.127
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact-Ø[mm] 1 / 1,5
    Nominal current ¹)[A] 8 / 10
    Nominal voltage ²)[V˜] 320
    Nominal voltage ²)[V˜] 100
    Test voltage (Breakdown voltage) [V˜] 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.919.137
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact Ø signal 1 mm
    Contact Ø performance 1.5mm
    Rated current signal 8 A
    Rated current power 10A
    Rated voltage at pollution level 3 signal 110V~
    Rated voltage at pollution degree 3 performance 110V~
    Test voltage signal 370V~
    Test voltage performance 840V~
    Insulation resistance signal > 10^8 Ω
    Insulation resistance performance > 10^8 Ω
    max. contact resistance signal 3 mOhm
    max. contact resistance power 3 mOhm
    S7.003.919.101
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact Ø signal 1 mm
    Contact Ø performance 1.5mm
    Connection cross section power 0.14 – 1 mm²
    Rated current signal 8 A
    Rated current power 10A
    Rated voltage at pollution level 3 signal 110V~
    Rated voltage at pollution degree 3 performance 110V~
    Test voltage signal 370V~
    Test voltage performance 840V~
    Insulation resistance signal > 10^8 Ω
    Insulation resistance performance > 10^8 Ω
    max. contact resistance signal 3 mOhm
    max. contact resistance power 3 mOhm
    S7.003.919.102
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact Ø signal 1 mm
    Contact Ø performance 1.5mm
    Connection cross section power 0.14 – 1 mm²
    Rated current signal 8 A
    Rated current power 10A
    Rated voltage at pollution level 3 signal 110V~
    Rated voltage at pollution degree 3 performance 110V~
    Test voltage signal 370V~
    Test voltage performance 840V~
    Insulation resistance signal > 10^8 Ω
    Insulation
    resistance performance > 10^8 Ω
    max. contact resistance signal 3 mOhm
    max. contact resistance power 3 mOhm
    S7.003.919.111
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact Ø signal 1 mm
    Contact Ø performance 1.5mm
    Connection cross section power 0.14 – 1 mm²
    Rated current signal 8 A
    Rated current power 10A
    Rated voltage at pollution level 3 signal 110V~
    Rated voltage at pollution degree 3 performance 110V~
    Test voltage signal 840V~
    Test voltage performance 840V~
    Insulation resistance signal > 10^8 Ω
    Insulation resistance performance > 10^8 Ω
    max. contact resistance signal 3 mOhm
    max. contact resistance power 3 mOhm
    S7.003.919.112
    Insert 19-pole (16 + 3)16 x 1 mm 3 x 1.5 mmContact Ø signal 1 mm
    Contact Ø performance 1.5mm
    Connection cross section power 0.14 – 1 mm²
    Rated current signal 8 A
    Rated current power 10A
    Rated voltage at pollution level 3 signal 100V~
    Rated voltage at pollution degree 3 performance 100V~
    Test voltage signal 1500V~
    Test voltage performance 1500V~
    Insulation resistance signal > 10^6 Ω
    Insulation resistance performance > 10^6 Ω
    max. contact resistance signal 3 mOhm
    max. contact resistance power 3 mOhm
