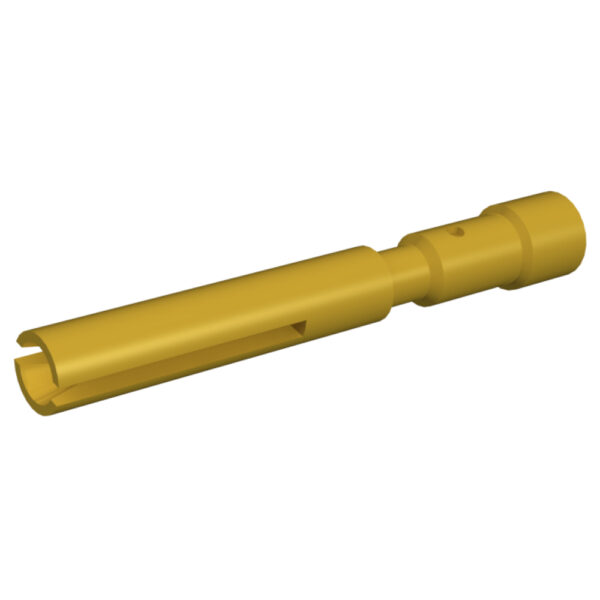

Insert 20-pole (4 x 2) + 12 Socket Contact | S7.010.901.022

Sealcon #: S7.010.901.022
Crimp Socket 1 mm Required Contact AWG 18 - AWG 16
Hummel: CC-Contacts
Hummel #: 7.010.901.022

This Contact is Required for specific Insert Configurations.
Details for configurations can be found under Technical Data.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range0.75 - 1.5 mm2AWG 18 - AWG 16
PDF DOWNLOADS
Catalog Page
  • Features

    Contacts are specific to the Inserts and number of Poles on your Connector.

    • There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.
    • Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

    • For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
    • Contacts are not universal, so check to see if there is a Required Contact for your installation.
    • If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.



  • This Contact Is Required for M23 Profinet Connector:

    Insert type Socket/Female is for Poles & Configurations:

    • 20-pole (4 x 2) + 12 Configuration - 12 x 1mm

    This Contact is Universal for any M23 Signal 1mm Insert.

    Type of Contact: Crimp Socket 1 mm Machined

    Crimp Range: 0.75 mm2 - 1.5 mm2

    Click Here for Crimp Tool Settings

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.920.108
    Insert 20-pole (4 x 2) + 128 x 0.6 mm / 12 x 1 mmNumber of Positions: 20 (4 x 2 + 12 mm)
    Number of Contacts: 4 x 2 | 12
    Contact Ø (mm): 0.6 | 1
    AWG [mm2]: 0.08 - 0.34 | 0.14 - 1 / 1.5
    Nominal Current [A]: 2 | 8*)
    Nominal Voltage [V~]: 60 | 160
    Test Voltage (Breakdown Voltage) [V~]: 500 | 1500
    Insulation Resistance [MΩ]: > 106 | > 106
    Max. Contact Resistance [mΩ]: 3 | 3
    Impedance [Ω] (at 100MHz): 100 | --
    S7.003.920.101
    Insert 20-pole (4 x 2) + 12Contact-Ø[mm] 0,6 / 1
    AWG [mm²] 0,08-0,34 / 0,14-1/1,5
    Nominal current ¹)[A] 2 / 8*)
    Nominal voltage ²)[V˜] 160 / 320
    Nominal voltage ²)[V˜] 60 / 160
    Test voltage (Breakdown voltage) ³) [V˜] 500 / 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    Impedance[Ω](at 100MHz)
    S7.003.920.102
    Insert 20-pole (4 x 2) + 12Contact-Ø[mm] 0,6 / 1
    AWG [mm²] 0,08-0,34 / 0,14-1/1,5
    Nominal current ¹)[A] 2 / 8*)
    Nominal voltage ²)[V˜] 160 / 320
    Nominal voltage ²)[V˜] 60 / 160
    Test voltage (Breakdown voltage) ³) [V˜] 500 / 1500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    Impedance[Ω](at 100MHz)
  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.901.002
    Crimp Socket 1 mm Machined0.34 mm2 - 1 mm2 AWG 22 - AWG 17
    S7.010.901.012
    Crimp Socket 1 mm Machined0.08mm2 - 0.56 mm2 AWG 28 - AWG 20
    S7.010.901.022
    Crimp Socket 1 mm Machined0.75 - 1.5 mm2AWG 18 - AWG 16
    S7.010.901.046
    Crimp Socket 1 mm Machined1 mm2 - 1.75 mm2
