Sealcon #: S7.210.600.000
(housing only)

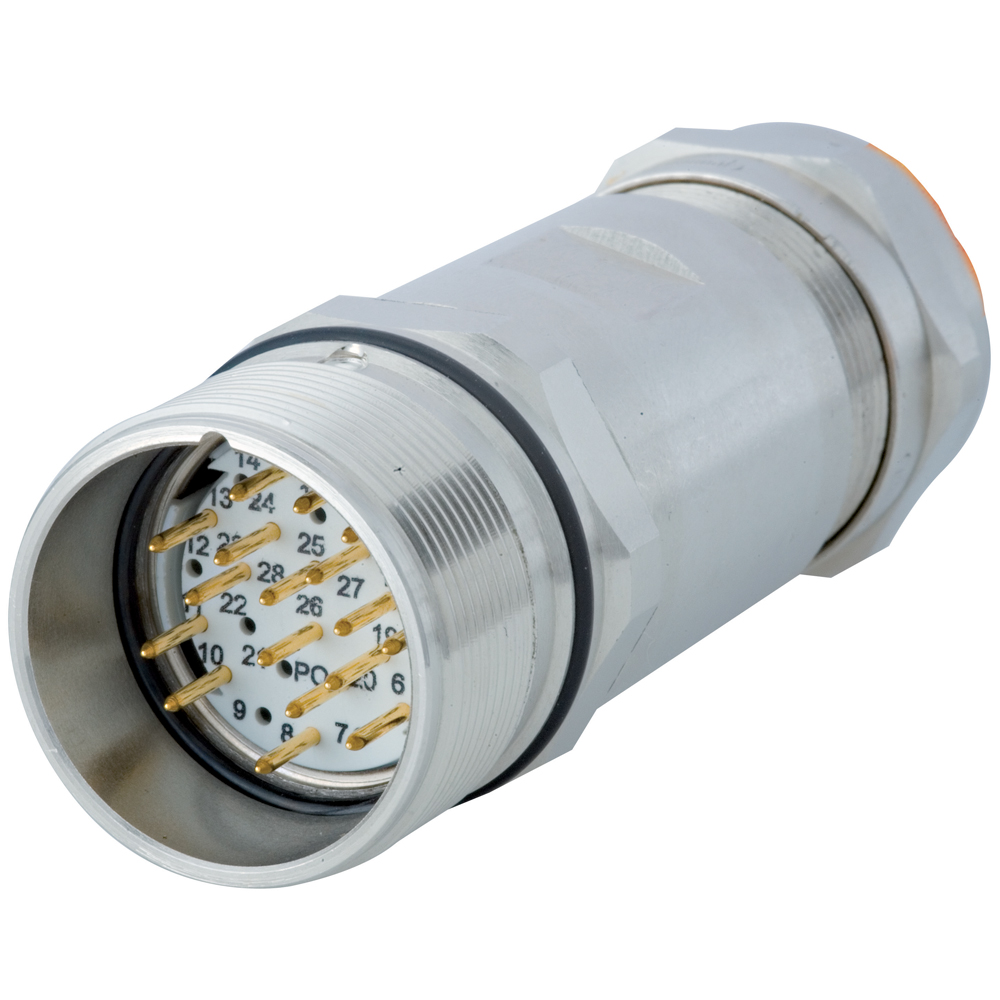

M27 Signal Straight Connector
Cable Range: .43" - .67" (11 - 17 mm)
Hummel: M27 Straight Connector, Male Thread
Hummel #: 7.210.600.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Three circuits in one connector
- Ideal for sensors and gauges
-
Housing Type: Coupler
Housing Material: Copper-Zinc Alloy
Housing Surface: Nickel
Version: Screw
External Thread (Plug-in Side): M27 x 1
Locking Type: Screw
Shield: Unshielded
Seal Type: O-Ring
Seal/O-Ring Material: NBR
Wrench Size (SW1/SW2/SW3): 27/25/27 mm
Cable Diameter: 11 – 17 mm
Length (L): 78 mm
Temperature Range: -40°C to +125°C
Protection Class: IP 67 INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.926.103
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.928.103
Insert 28-pole 28 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmCONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.971.001
Crimp Pin 1 mm Machined 0.14 mm2 - 1 mm2AWG 26 - AWG 17 S7.010.971.002
Crimp Socket 1 mm Machined 0.14 mm2 - 1 mm2AWG 26 - AWG 17
