Sealcon #: S7.410.700.000
(housing only)

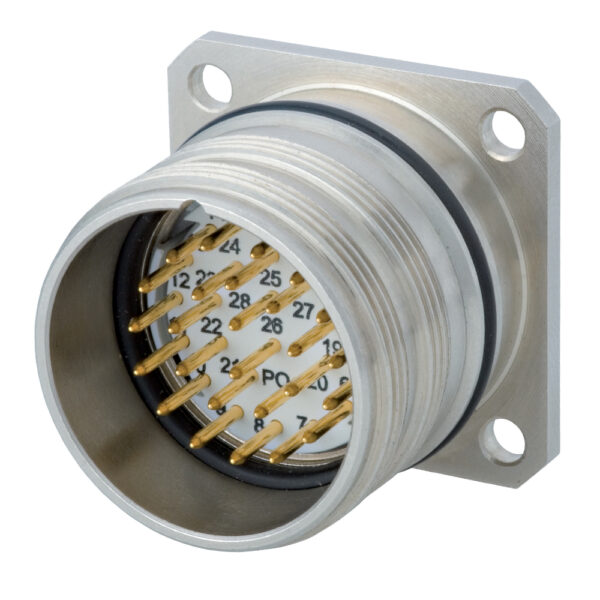

M27 Signal Panel Connector
Cable Range: Flange: 4 holes .13" (3.2 mm)
Hummel: M27 Signal panel connector
Hummel #: 7.410.700.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Three circuits in one connector
- Ideal for sensors and gauges
-
Housing Material: Copper-Zinc Alloy
Housing Surface: Nickel
Insert: Pin, Socket
Installation Type: Rear Wall
Version: Screw, with Vibration Protection
External Thread (Plug-in Side): M27 x 1
Locking Type: Screw
Shield: Unshielded
Seal Type: O-Ring
Seal/O-Ring Material: NBR
Panel Hole: Ø 23 + 0.1 mm
Flange: 30 x 30 mm
Hole Distance: 23 mm
Hole Diameter: 4 x Ø 3.2 mm
Length (L): 25 mm
Protection Class: IP 67, IP 69K
Temperature Range: -40°C to +125°C INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.926.103
Insert 26-pole 26 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.928.103
Insert 28-pole 28 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 74V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmCONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.971.001
Crimp Pin 1 mm Machined 0.14 mm2 - 1 mm2AWG 26 - AWG 17 S7.010.971.002
Crimp Socket 1 mm Machined 0.14 mm2 - 1 mm2AWG 26 - AWG 17
