Sealcon #: S7.468.000.000
(housing only)

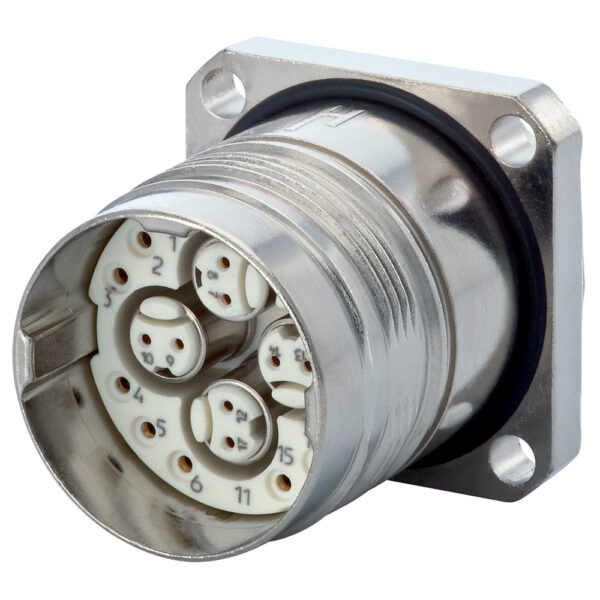

M23 Fast Ethernet PoE Panel ≤ Cat7 Connector
Cable Range: Flange 1.02" x 1.02" (26 x 26 mm)
Hummel: Fast Ethernet PoE, Panel Connector, Rear Mounting
Hummel #: 7.468.000.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Data transfer up to Gigabit rate – ≤ Cat7
- Hybrid Connectors for combined data and power transmission
- Five separate shield potentials available
- Rugged, safe and compact: ideal for use in rough industries
-
Housing Material: Zinc Die Cast
Housing Material Surface: Nickel
Installation Type: Rear Wall
External Thread Plug-In Side: M23 x 1
Locking Type: Screw
Shield: Unshielded
Seal Type: O-Ring
Material Seals/O-Rings: NBR
Panel Hole: Ø 23 + 0.1 mm
Flange: 26 x 26 mm
Hole Distance: 20.5 mm
Hole Diameter: 4 x Ø 3.2 mm
Temperature Range: -40°C to +125°C
Protection Class: IP 67
Suitable Contact Inserts: S7.001.920.108, S7.003.920.102 INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.920.108
Insert 20-pole (4 x 2) + 12 8 x 0.6 mm / 12 x 1 mm Number of Positions: 20 (4 x 2 + 12 mm)
Number of Contacts: 4 x 2 | 12
Contact Ø (mm): 0.6 | 1
AWG [mm2]: 0.08 - 0.34 | 0.14 - 1 / 1.5
Nominal Current [A]: 2 | 8*)
Nominal Voltage [V~]: 60 | 160
Test Voltage (Breakdown Voltage) [V~]: 500 | 1500
Insulation Resistance [MΩ]: > 106 | > 106
Max. Contact Resistance [mΩ]: 3 | 3
Impedance [Ω] (at 100MHz): 100 | --S7.003.920.101
Insert 20-pole (4 x 2) + 12 Contact-Ø[mm] 0,6 / 1
AWG [mm²] 0,08-0,34 / 0,14-1/1,5
Nominal current ¹)[A] 2 / 8*)
Nominal voltage ²)[V˜] 160 / 320
Nominal voltage ²)[V˜] 60 / 160
Test voltage (Breakdown voltage) ³) [V˜] 500 / 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3
Impedance[Ω](at 100MHz)S7.001.920.107
Insert 4x2+12 with Dip Solder Pins CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.901.002
Crimp Socket 1 mm Machined 0.34 mm2 - 1 mm2 AWG 22 - AWG 17 S7.010.901.012
Crimp Socket 1 mm Machined 0.08mm2 - 0.56 mm2 AWG 28 - AWG 20 S7.010.901.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2AWG 18 - AWG 16 S7.010.901.045
Crimp Pin 1 mm Machined 0.75 mm2- 1.5 mm2 S7.010.901.046
Crimp Socket 1 mm Machined 1 mm2 - 1.75 mm2 S7.010.901.049
Crimp Pin 1 mm Machined 0.14 mm2- 1 mm2 S7.010.980.602
Crimp Socket 0.6 mm Machined 0.08 mm2- 0.34 mm2 S7.010.980.641
Crimp Pin 0.6 mm Machined 0.08 mm2- 0.34 mm2
