Sealcon #: S7.710.743.000
(housing only)

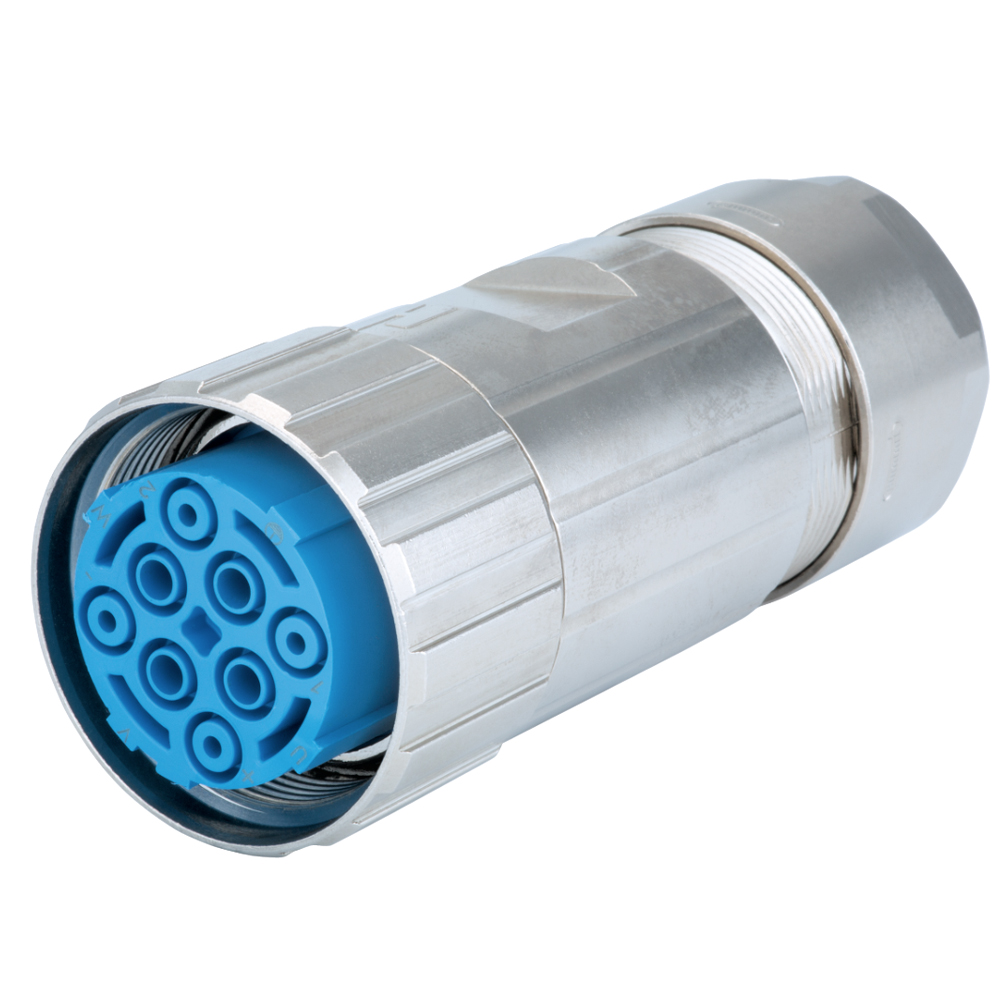

M40 Power Straight Connector
Cable Range: .67" - .97" (17 - 24 mm)
Hummel: M40 Straight Connector, Female Thread, 4+3+PE
Hummel #: 7.710.743.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Rugged design
- For up to 55 A applications
-
Pressure Rating:
IP 67 / IP 69 K per EN 60 529 (connected), Type NEMA 4x
Mechanical Data:
Housing Die Casting (Zinc)
Housing Surface: Nickel Plated
Contacts: Gold-plated Brass Alloy
Type of Contacts: Crimp
Number of Contacts: 6 & 8
Amp Rating: 28 - 55 A
Voltage Rating: 300 - 600 V
Cable OD: .51" - 1.10" (13 - 28 mm)Wire Gauge: 20 - 6 AWG CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.015.952.001
Crimp Pin 2 mm Machined 1.0 mm2 - 4.0 mm2 (AWG 17 - AWG 12) S7.015.952.002
Crimp Socket 2 mm Machined 1.0 mm2 - 4.0 mm2 (AWG 17 - AWG 12) S7.015.953.601
Crimp Pin 3.6mm Machined 1.5 mm2 - 4.0 mm2 (AWG 16 - AWG 12) S7.015.953.602
Crimp Socket 3.6mm Machined 1.5 mm2 - 4.0 mm2 (AWG 16 - AWG 12) S7.015.953.611
Crimp Pin 3.6mm Stamped 6.0 mm2 (AWG 10) S7.015.953.612
Crimp Socket 3.6mm Machined 6.0 mm2 (AWG 10) S7.015.953.621
Crimp Pin 3.6mm Machined 10.0 mm2 ( AWG 8) S7.015.953.622
Crimp Socket 3.6mm Machined ( AWG 8) S7.015.953.631
Crimp Pin 3.6mm Machined 16.0 mm2 ( AWG 6) S7.015.953.632
Crimp Socket 3.6mm Machined 16.0 mm2 ( AWG 6)
UR (Recognized Underwriters Laboratories)
UL approval UL (Listed Underwriters Laboratories)
