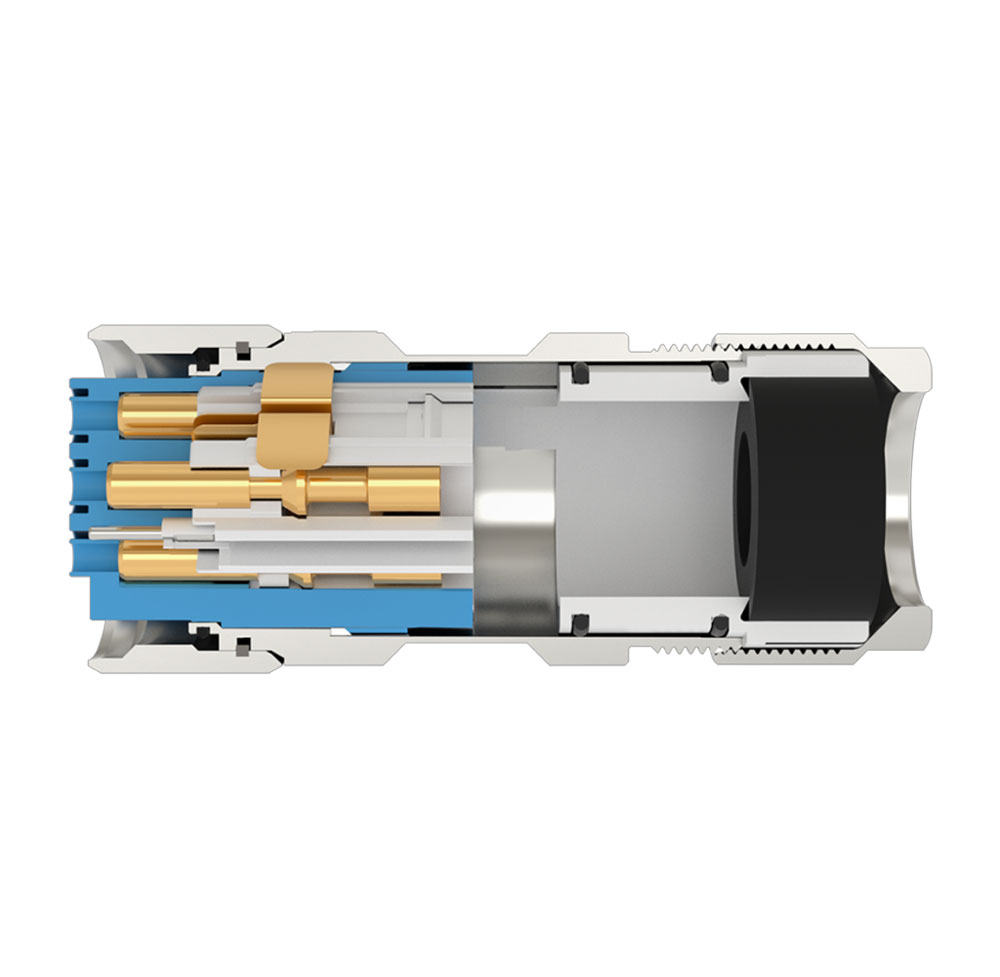

Features

• Rugged design
• For up to 55 A applications

Housing Type: Cable
Housing Material: Zinc Die Cast, Brass
Housing Surface: Nickel
Insert: Socket
Version: Screw
Internal Thread (Plug-in Side): M40 x 1.5
Knurled Nut Ø (Plug-in Side): 46 mm
Locking Type: Screw
Shield: Shielded
Seal Type: O-Ring
Seal/O-Ring Material: FKM (FPM), NBR
Wrench Size (SW1/SW2): 40/38 mm
Cable Diameter: 21 – 28 mm
Length (L): 111.2 mm
Temperature Range: -40°C to +125°C
Protection Class: IP 67, IP 69K
Connection Type: Crimp
Number of Poles: 8
Pole Configuration: 4 + 3 + PE
Contact Insert Color: Blue
Insulating Body Material: PBT
Number of Signal Contacts: 4
Number of Power Contacts: 3
Number of PE Contacts: 1
Contact Ø Signal: 2 mm
Contact Ø Power: 3.6 mm
Terminal Cross Section Signal: 0.14 – 1.5 mm²
Terminal Cross Section Power: 2.5 – 16 mm²
Crimp Range: 0.14 – 16 mm²
Nominal Current Signal: 28 A
Nominal Current Power: 55 A
Nominal Voltage Signal: 300 V~
Nominal Voltage Power: 600 V~
Test Voltage Signal: 2500 V~
Test Voltage Power: 4000 V~
Insulation Resistance Signal: > 10¹³ Ω
Insulation Resistance Power: > 10¹³ Ω
Max. Contact Resistance Signal: 3 mΩ
Max. Contact Resistance Power: 1 mΩ
Minimum Mating Cycles: > 500
