Features

• Rugged design
• For up to 55 A applications

Housing Material: Zinc Die Cast
Housing Surface: Nickel
Insert: Pin
Installation Type: Rear Wall
Version: Screw, for Pin Inserts
External Thread (Plug-in Side): M40 x 1.5
Locking Type: Screw
Shield: Unshielded
Seal Type: O-Ring
Seal/O-Ring Material: FKM (FPM), NBR

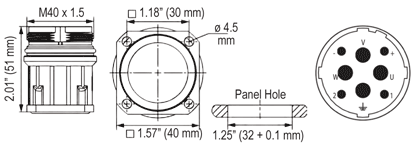

Panel Hole: Ø 32 + 0.1 mm
Flange: 40 x 40 mm
Hole Distance: 30 mm
Hole Diameter: 4 x Ø 4.5 mm
Length (L): 51 mm
Temperature Range: -40°C to +125°C
Protection Class: IP 67, IP 69K
Connection Type: Crimp
Number of Poles: 8
Pole Configuration: 4 + 3 + PE
Contact Insert Color: Blue
Insulating Body Material: PBT
Number of Signal Contacts: 4
Number of Power Contacts: 3
Number of PE Contacts: 1
Contact Ø Signal: 2 mm
Contact Ø Power: 3.6 mm
Terminal Cross Section Signal: 0.14 – 1.5 mm²
Terminal Cross Section Power: 2.5 – 16 mm²
Crimp Range: 0.14 – 16 mm²
Nominal Current Signal: 28 A
Nominal Current Power: 55 A
Nominal Voltage Signal: 300 V~
Nominal Voltage Power: 600 V~
Test Voltage Signal: 2500 V~
Test Voltage Power: 4000 V~
Insulation Resistance Signal: > 10¹³ Ω
Insulation Resistance Power: > 10¹³ Ω
Max. Contact Resistance Signal: 3 mΩ
Max. Contact Resistance Power: 1 mΩ
Minimum Mating Cycles: > 500
