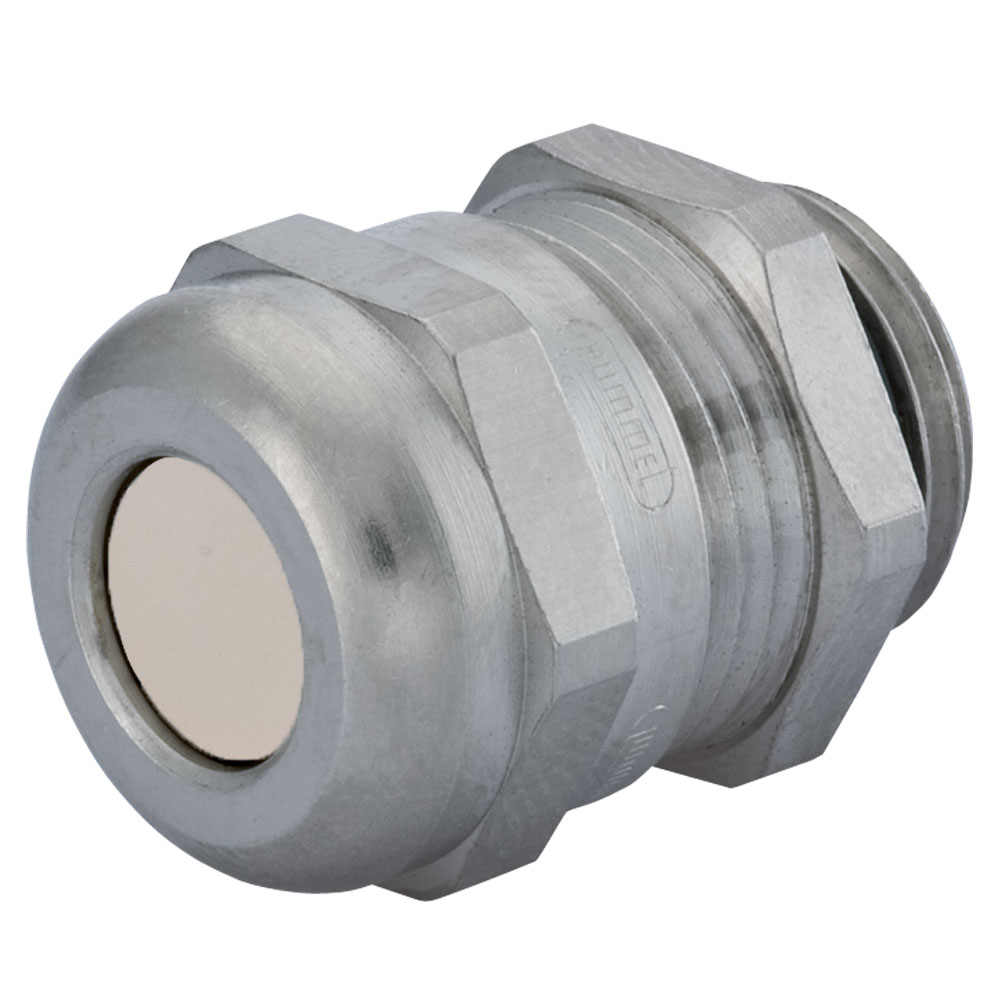

M25 x 1.5 Nickel Plated Brass Multi-Hole (Solid Plug) Dome Cable Gland | Cord Grip | Strain Relief CD25MP-BR

Sealcon #: CD25MP-BR
Color: Nickel
Material: Nickel Plated Brass
Number of Holes: Solid Plug
Diameter of Holes: Solid Plug" (Solid Plug)
Insert Part Number: 1.089.2199.19
Hummel: HSK-K-Multi
Hummel #: 1697259950

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Body Length (B)1.02" (26 mm)
Thread Length (D)0.28" (7 mm)
Wrench Flat (F1)1.18" (30 mm)
Catalog Page
  • Features

    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.

  • Pressure Rating
    IP 65 / IP 68 10 bar possible with ideal fit
    • Fittings: Nickel Plated Brass
    • Form Seal: Elastomer
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -40C° to 100C° (-40°F to 212°F)
