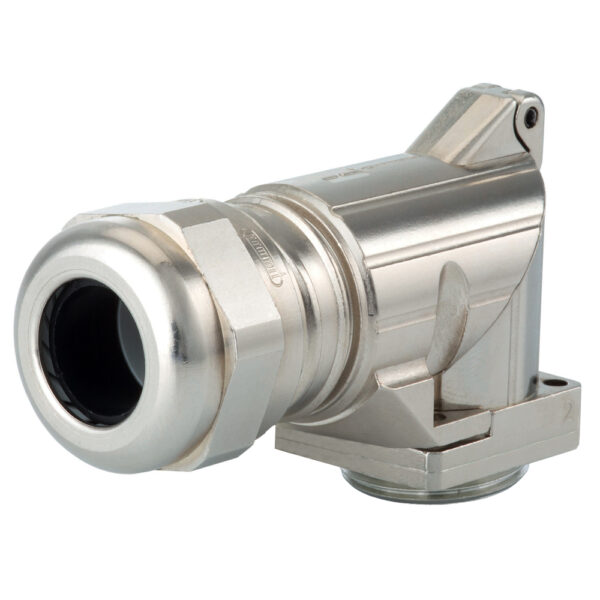

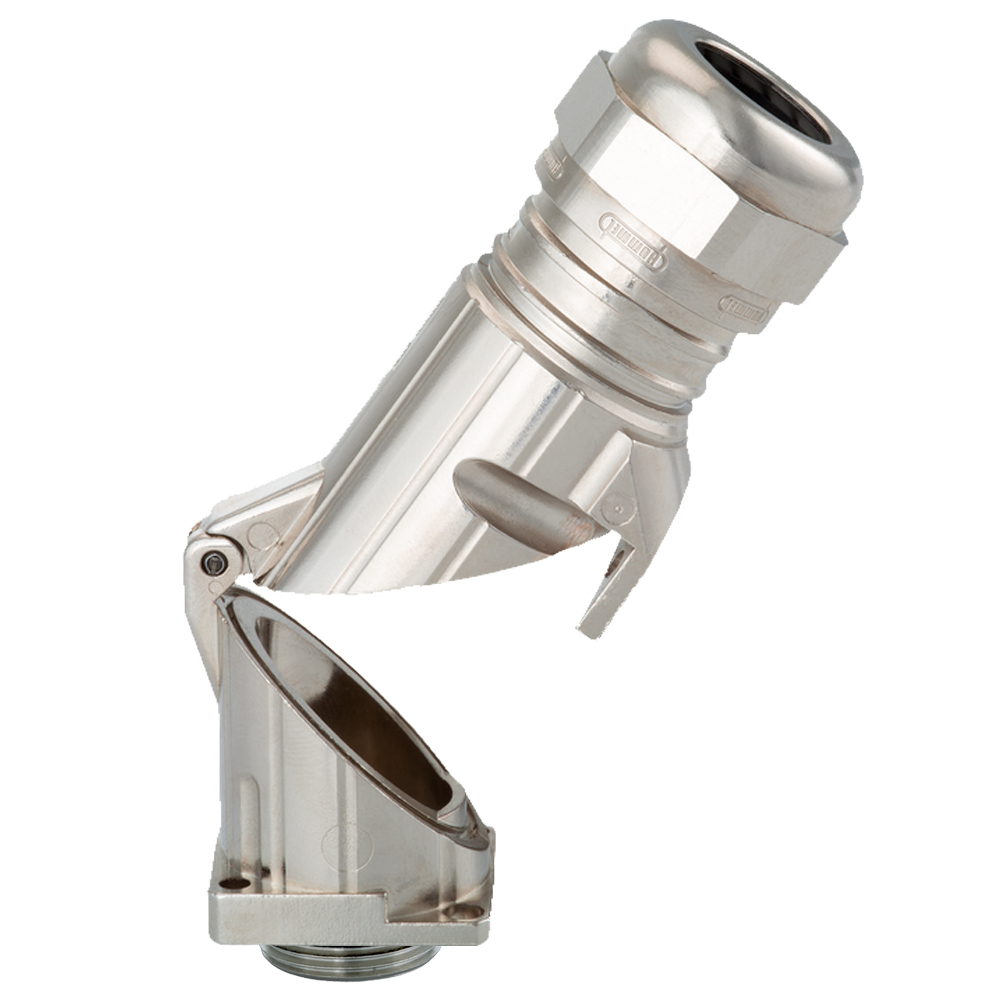

Sealcon #: ED20MR-BR
Cable Range: 0.28" - 0.47" (7 to 12 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-W
Hummel #: 1.309.2020.51
Locking Nut Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 0.79" (20 mm) |
|---|---|
| Body Length (B) | 1.5" (38 mm) |
| Thread Length (D) | 0.3" (7.5 mm) |
| Wrench Flat (F1) | 0.98" (25 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This Nickel Plated Brass Strain Relief with M20 x 1.5 Thread will provide your application with a product made of exceptional quality.
Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
-
Pressure RatingMaterials
IP 68- Fittings: Nickel Plated Brass
- Form Seal: Buna-N
- Optional ORing: FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating TemperatureNylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant
-40C° to 100C° (-40°F to 212°F) APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
EAC
VDE approval VDE (Association of German Electrical Engineers)
