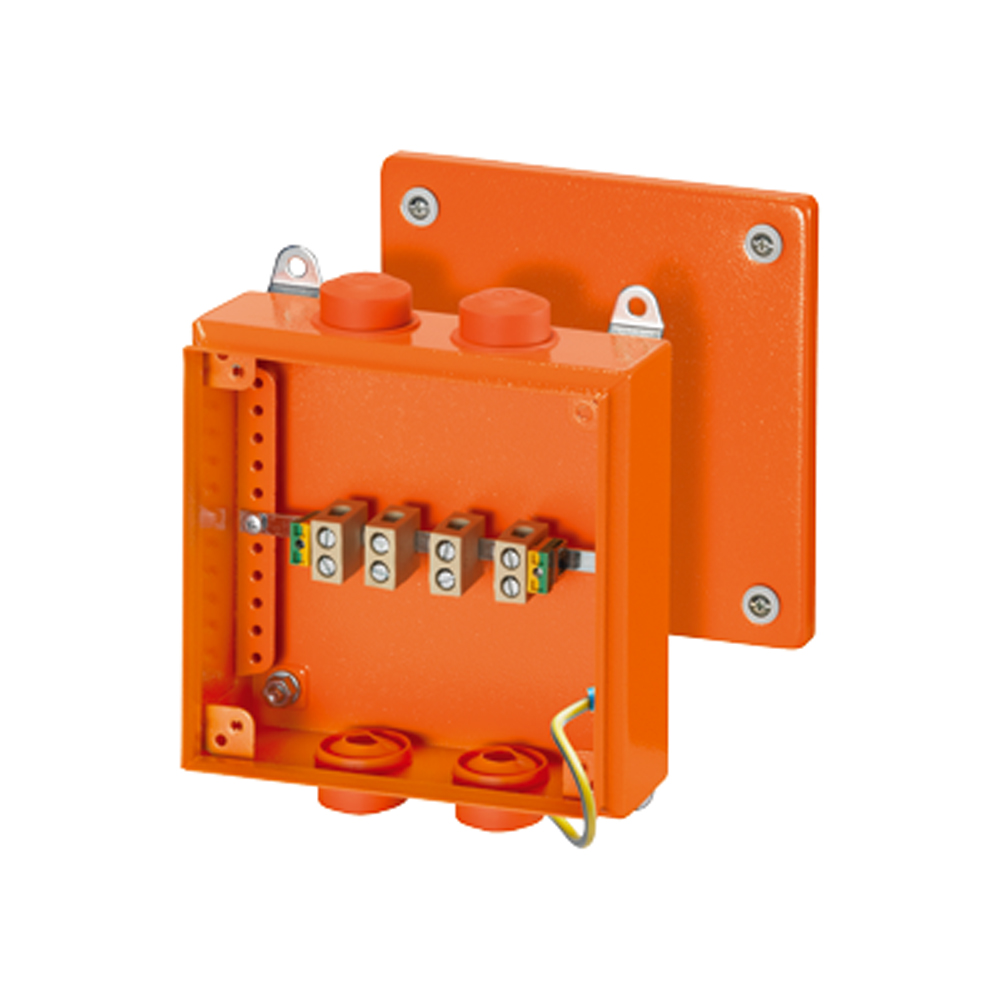

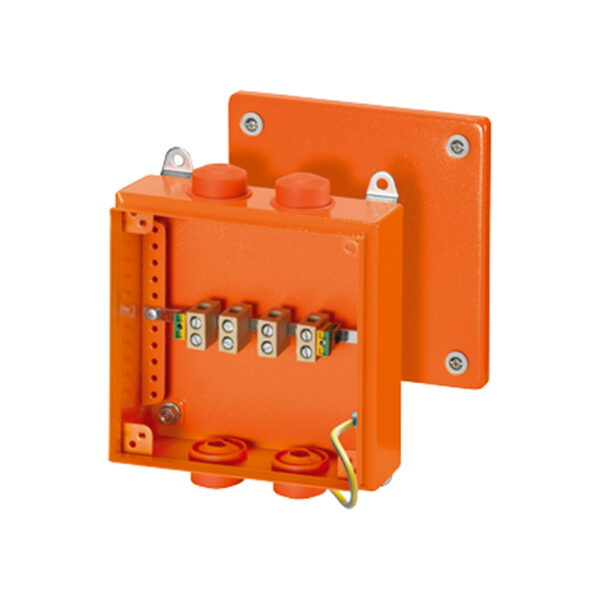

Hensel ENYCASE Thermoplastic Cable Junction Box 1.5-6 mm | FK ENYCASE Fire Resistance | FK9255

Sealcon #: FK9255
Size: FK ENYCASE Fire Resistance
Material: FK 200 x 200 x 80 mm
Hensel #: FK 9255
Cover screws and mounting screws included.

Cable junction box 1.5-6 mm², Cu
Connection box 1.5-16 mm², Cu
5-pole per pole 4 x 1.5 mm² r, 4 x 2.5 mm² r, 4 x 4 mm² r, 4 x 6 mm² r, 2 x 10 mm² r, 2 x 16 mm² r (remove wire protection)
Connecting terminal made from ceramic with resistance to high temperatures
Mounted grommets 4 EDKF 40,sealing range Ø 11-30 mm, closed
Intrinsic fire resistance in accordance with DIN 4102-12 (German standard) in combination with function-retaining cables
Tested with cable manufacturers Dätwyler, Eupen, Nexans, Studer, Pirelli and Lynenwerk for the intrinsic fire resistance E30 and E90, see test certificate no.: P-MPA-E-02-032, valid till 20 March 2023
Tested for insulation integrity PH120 in accordance with BS EN 50200 in connection with insulation retaining cables
Bore hole 8.2 mm(for dowels refer to technical data)
For normal environment and protected outdoor

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Catalog Page
  • Rated insulation voltage Ui = 400 V a.c./d.c.
    Rated current: 63 A
    Material Sheet steel, powder-coated
    Tightening torque for terminal 2.0 Nm
    Degree of protection IP 66
    Height 200 mm
    Width 200 mm
    Depth 80 mm
    Weight 2,133 kg
    In accordance with DIN 4102 part 12
    IEC 60670-22
    BS EN 50200
    IK10 (20 Joule)
