Sealcon #: S7.559.600.000
(housing only)

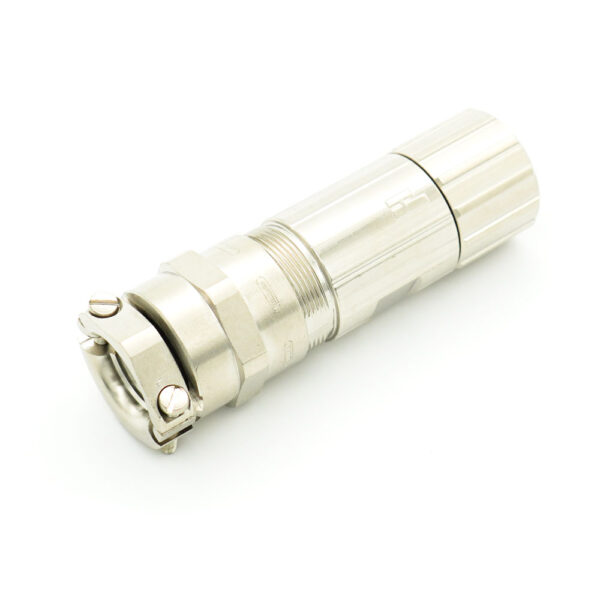

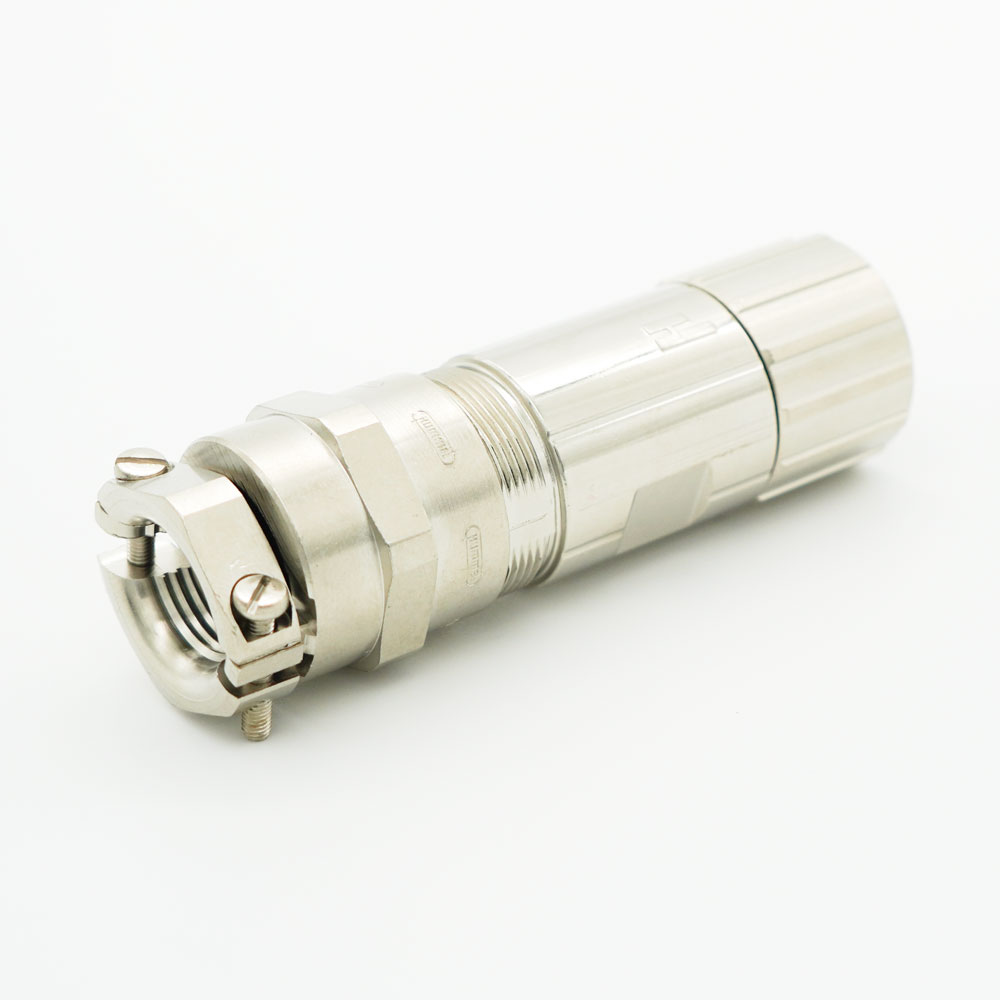

Straight Connector MZ Clamp | Female Thread
Cable Range: .43-.67" (11-17 mm)
Material: Nickel Plated Brass
Hummel: M23 Power Straight Connector MZ Clamp
Hummel #: 7559600000
Dimensions of Packaging: 180 x 180 x 30 mm
Bag Qty: 5
Weight: .118 kg
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Housing Material: Copper-Zinc Alloy, Die Cast
Housing Surface: Nickel Plated
Inserts: Thermoplastic Polyamide PA 6 (Nylon 6/6), PBT
Fire Protection Class: V-0
Contacts: Brass Alloy
Contact Surface: Nickel and Gold Plated (0.25 μm)
Minimum Mating Cycles: > 1000
Seal/O-Ring Material: Buna-N (Black), Optional FKM (Green)
Contact Type: Crimp
Protection Class: IP 67, IP 69K
Temperature Range: -40°C to +125°C INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.084.910.101
Insert 10-Pole 10 x 1 mm Number of Positions: 10
Number of Contacts: 10
Contact-Ø (mm): 1
Nominal Current1) [A]: 10
Nominal Voltage2) [V~] degree of protection 33): 160
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1013
Max. Contact Resistance [mΩ]: 3S7.084.943.101
Insert 4 + 3 + PE 4 x 1 mm / 4 x 2 mm Number of Positions: 4 + 3 + PE
Number of Contacts: 4 | 4
Contact-Ø (mm): 1 | 2
Nominal Current1) [A]: 8 | 28
Nominal Voltage2) [V~] degree of protection 33): 300 | 600
Test Voltage (Breakdown Voltage) 4) [V~]: 2500 | 4000
Insulation Resistance [MΩ]: > 1013
Max. Contact Resistance [mΩ]: 3S7.084.951.101
Insert-5+PE 6 x 2 mm Number of Positions: 5 + PE
Number of Contacts: 6
Contact-Ø (mm): 2
Nominal Current1) [A]: 28
Nominal Voltage2) [V~] degree of protection 33): 600
Test Voltage (Breakdown Voltage) 4) [V~]: 4000
Insulation Resistance [MΩ]: > 1013
Max. Contact Resistance [mΩ]: 3S7.084.953.101
Insert 5 + 3 + PE 5 x 1 mm + 3 x 2 mm + PE Contact Ø signal 2mm
Contact Ø performance 1 mm
Signal connection cross section 0.75 – 4 mm²
Connection cross section power 0.75 – 4 mm²
Rated current signal 8 A
Rated current power 28 A
Rated voltage at pollution level 3 signal 160V~
Rated voltage at pollution degree 3 performance 600V~
Test voltage signal 2500V~
Test voltage performance 4000V~
Insulation resistance signal > 10^13 Ω
Insu
lation resistance performance > 10^13 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhmS7.084.942.101
Insert 10 Pole 2+4+3+PE S7.084.942.102 Insert 10 Pole 2+4+3+PE S7.084.944.101
Insert 12 Pole 4+4+3+PE S7.084.944.102
12 pole 4+4+3+PE S7.084.946.101
Insert 6+4-3-PE S7.084.946.101
Insert 14 Pole 6+4+3+PE S7.084.946.102
Insert 14 Pole 6+4+3+PE S7.084.954.101
Insert 13 Pole 4+4+4+PE S7.084.954.102
Insert 13 Pole 4+4+4+PE CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.941.001
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.002
Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.021
Crimp Pin 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.941.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.942.001
Crimp pin 2mm, machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.002
Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.011
Crimp Pin 2 mm Machined 2.5 - 4 mm2 AWG 14 - AWG 12 S7.010.942.012
Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.940.801
Hybrid Crimp pin signal 0.8 mm turned 0.08 – 0.34mm² S7.010.941.001 Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.002 Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.021 Crimp Pin 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.941.022 Crimp Socket 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.942.001 Crimp pin 2mm, machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.002 Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.011 Crimp Pin 2 mm Machined 2.5 - 4 mm2 AWG 14 - AWG 12 S7.010.942.012 Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.942.021
Hybrid Crimp pin signal 2 mm turned 0.75 – 2.5mm² S7.010.942.022
Hybrid Crimp Socket Power 2 mm Turned 0.75 – 2.5mm² S7.010.942.023
Hybrid Crimp Pin Power 2 mm Turned 2.5 – 4mm² S7.010.942.024
Hybrid Crimp Socket Power 2 mm Turned 2.5 – 4mm² S7.010.960.611
Hybrid Crimp Data Pin 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.960.612
Hybrid Crimp Data Socket 0.6 mm, machined 0.05 - 0.34 mm2 (AWG 30 - 22) S7.010.980.602
Crimp Socket 0.6 mm Machined 0.08 mm2- 0.34 mm2 S7.010.980.643
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.980.812
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.015.961.001
Hybrid Crimp Data / Signal Pin 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17) S7.015.961.002
Hybrid Crimp Data / Signal Socket 1 mm, machined 0.14 - 1 mm2 (AWG 26 - 17)
CSA approval CSA (Canadian Standard Association)
UR (Recognized Underwriters Laboratories)
VDE approval VDE (Association of German Electrical Engineers)
