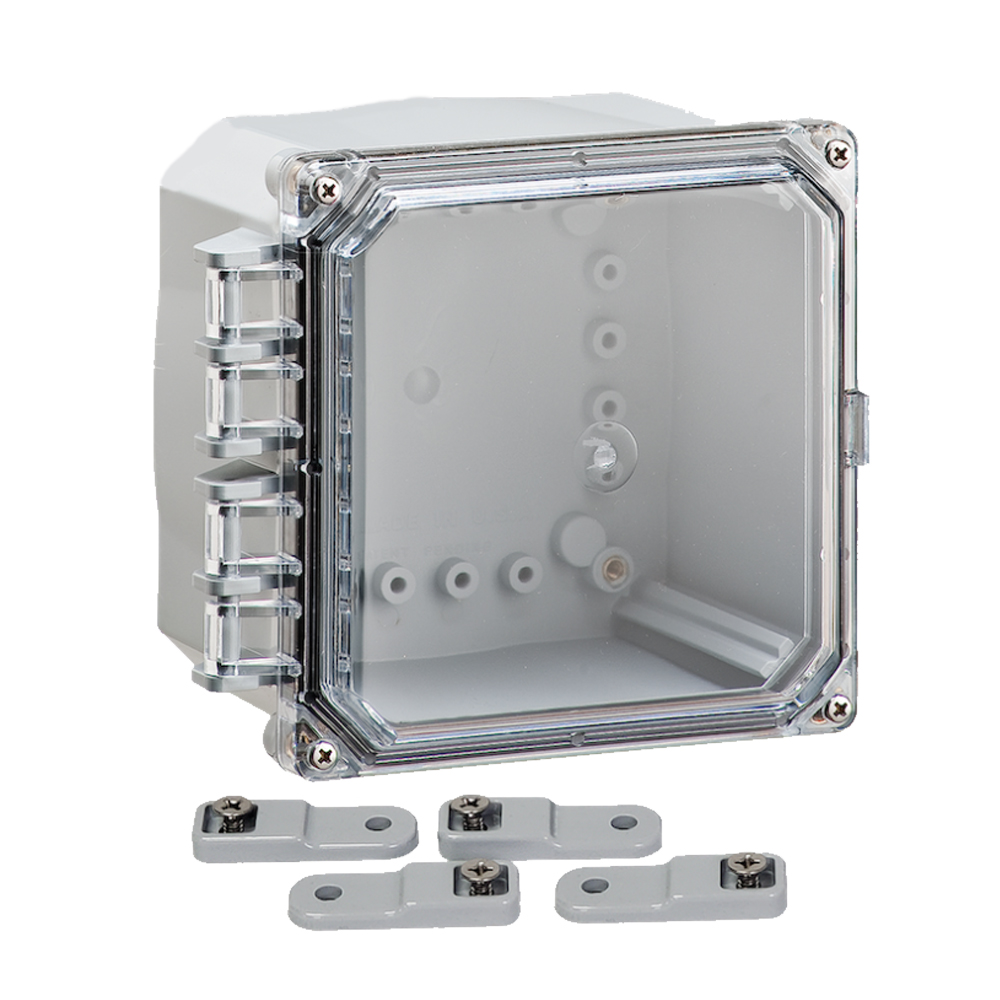

Polycarbonate Enclosure 6″ x 6″ x 4″ | Hinged Clear Four Screw Cover | SH6064HC-6P

Sealcon #: SH6064HC-6P
Size: 6" x 6" x 4" (152.4 x 152.4 x 101.6 mm)
Material: Hinged Clear Four Screw Cover
Integra #: H6064HC-6P
Cover screws and mounting screws included.
  • Made in the USA
  • Standard color – light gray with a gloss finish.
  • Best material – bases, opaque covers and clear covers are all made of high-impact, UV resistant polycarbonate.
  • Easy ordering – one part number includes base, lid, mounting feet or flanges and all lid fastening hardware (mounting panels sold separately).
  • Flexible interior mounting – features the unique and adjustable depth “T-Rail” back panel mounting system (back panel and adjustable brackets sold separately).
  • Features multiple bosses for easy installation of devices and DIN rails.
  • UL-50 / c-UL Listed (files # E229365, # E207562)
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page
  • Features

    • Sealcon’s polycarbonate enclosures are available in 11 standard configurations. Box configurations include hinged or non-hinged lids in 2-screw, 4-screw, or stainless steel metal latched lids.
    • Made in the USA
    • Sealcon’s traditional high impact polycarbonate enclosure offering including eleven sizes from 4x4x3 through 18x16x10
    • Light gray in color with high gloss finish
    • Available in four configurations including screw cover, hinged w/two screws, hinged w/four screws and hinged with locking latch
    • Available in two latch styles, stainless steel (LL) or non-metallic (NL) locking latch
    • All sizes and configurations are available in clear or opaque lid
    • All sizes and configurations include enclosure foot mount or flange mount system
    • Features Sealcon’s unique T-Rail mounting system (brackets are option) for face plates, swing panels, layering back panels and/or infinitely variable back panel height
    • Brass inserts for securing mounting feet or flange, optional back panel and lid
      UL/C-UL-50 listed Nema 1,2,3,3R,3S,4,4X,5,12,13 and “S” series and “H-6P” series are NEMA 6/6P, marine use rated

    Available Options:

    • Hinged Cover
    • Clear Cover
    • Integrated Mounting Flange
    • Non-Metallic Locking Latch



  • Mechanical and Thermal Test Spec.

    • Instrumented Dart Impact @ 73° F 565 in-lbs
    • Made in the USA
    • Falling Ball Impact @ 73° F: UL-746 900 in-bls
    • Deflection Temperature @ 264 psi: ASTM D648 270 Deg F.
    • Modulus of Elasticity: rn ASTM D790
    • Temperature Range Deg. F -40 to 265

    Flammable / UV Ratings Test Spec.

    • Flame Rating - UL 94 5VA
    • Outdoor UV Exposure - UL F1
    Impact
    Instrumented Dart Impact @ 73° F in-lbs. 565
    Fire Resistance
    UL 94 5VA
