M23 RJ45 Panel Connector

Type: M20 x 1.5 thread Incl. 8-pole coupler, fully occupied

M20 x 1.5 thread Incl. 8-pole coupler, fully occupied

Ideal in Low Voltage Applications

Sealcon # S7.R42.008.000

(Incl. 8 poles coupler,fully occupied)
Hummel # 7.R42.008.000
Hummel

Features

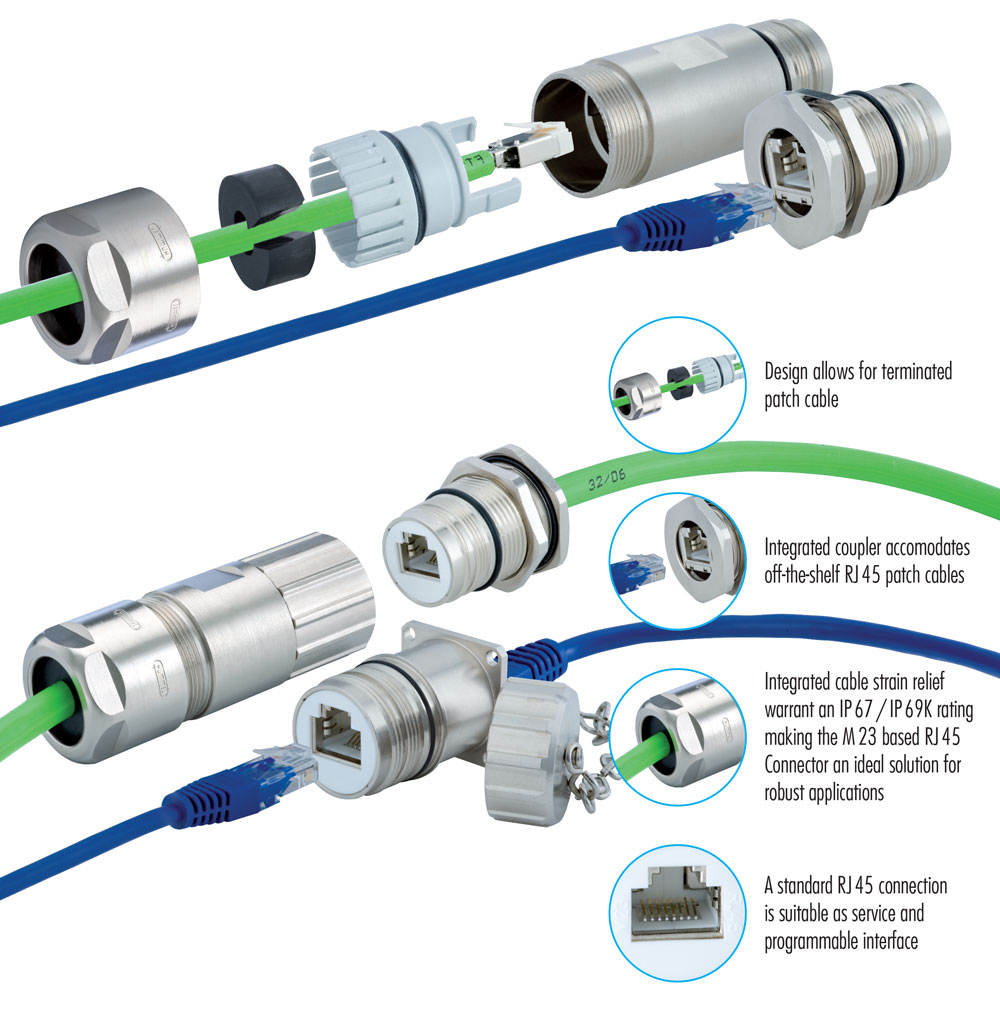

  • A robust and space saving Industrial Ethernet solution
  • A solution for harsh industrial environments
  • Integrated female coupler accommodated off-the-shelf RJ45 patch cables
  • Simple and quick assembly

Technical Data

Mechanical Data

  • Housing: Brass Alloy, Die Cast
  • Housing Surface: Nickel Plated
  • Contacts: Brass Alloy
  • Contact Surface: Depends on RJ45 type used
Temperature Range: Depends on RJ45 type used
IP 67 / IP 69K per EN 60529 (mated)
Cat: ≤ Cat5-5e
Incl. 8-pole coupler, fully occupied.
