Nickel Plated Brass EMI / RFI Braided w/ Clamp Strain Relief Fittings NPT

CD09NA-ME

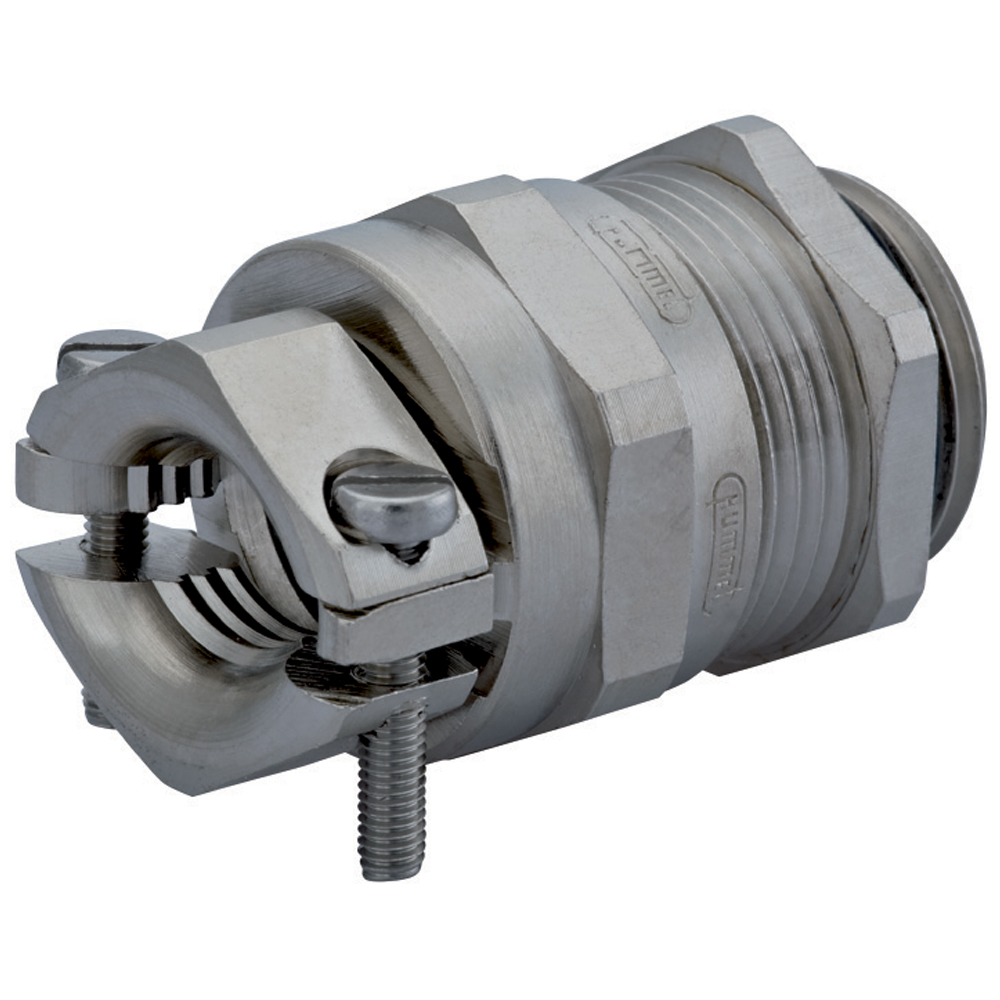

Nickel Plated Brass EMI / RFI Braided w/ Clamp 3/8" NPT

Thread Range: 3/8" NPT

Sealcon # CD09NA-ME
Type .16" - .31" (4 - 8 mm)
Color Nickel
Hummel # 1.692.3800.70
Hummel HSK-MZ-EMV
Material Nickel Plated Brass

Hole Diameter (A)
1.05" (26.7 mm)
Body Length (B)
1.38" (35 mm)
Thread Length (D)
.51" (13 mm)
Wrench Flat (F1/F)
1.18" (30 mm) / .75" (19 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features

  • Liquid Tight - Submersible to 300 ft. - NEMA 4x & 6 (IP68 / IP 69 K)
  • Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE


This EMI/RFI Proof Nickel Plated Brass Strain Relief with clamp and 3/8" NPT Thread will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K

Materials

  • Fittings: Nickel Plated Brass
  • Form Seal: Buna-N
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic

Operating Temperature

-40°C to 100°C (-40°F to 212°F)
