Nickel Plated Brass, High Performance Clamp, PG 42, Strain Relief, Cord Grips, Cable Glands-Straight Dome-Sealcon, Hummel

maximize

3D CAD Viewer

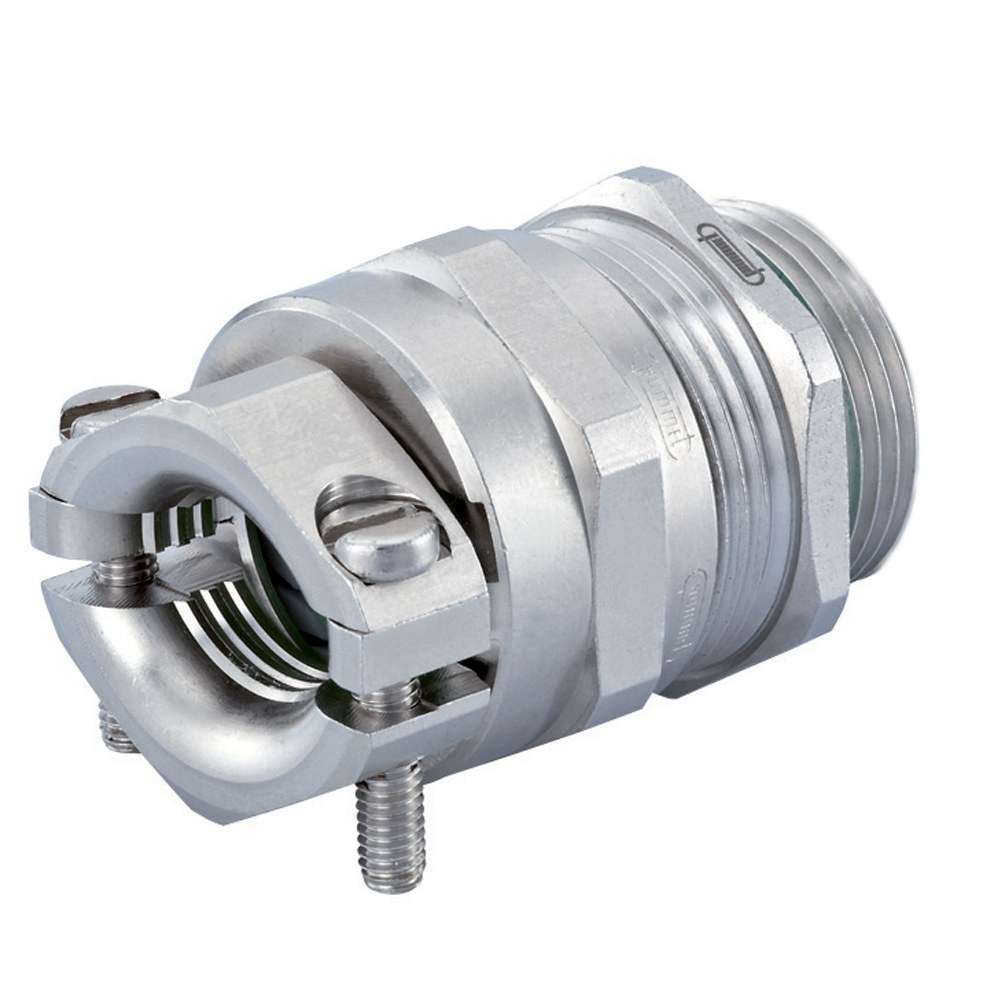

Nickel Plated Brass Standard PG 42 Clamp

Thread Type: PG 42

Locking Nut Sold Separately

Sealcon # CD42AA-MZ

Cable Range 1.26" - 1.50" (32 - 38 mm)

Color Nickel

Hummel # 1.690.4200.01

Hummel HSK-MZ

Material Nickel Plated Brass

Hole Diameter (A)

2.13" (54.1 mm)

Body Length (B)

2.01" (51 mm)

Thread Length (D)

.35" (9 mm)

Wrench Flat (F1/F)

2.24" (57 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Liquid Tight - Submersible to 300 ft. - Type Type Nema 4x & 6 (IP68 / IP 69 K)
Highest Pressure Rating - Patented form seal guarantees 150 psig (10 bar)
Flame protected - V0 Rated according to UL 94
Halogen- and Phosphorous free materials
Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
Durable - Rugged Construction
Environmentally compliant - RoHS & Deca BDE

This Nickel Plated Brass Strain Relief with clamp and PG 42 Thread will provide your application with a product made of exceptional quality.
