Nickel Plated Brass Mini WADI - Smallest Cable O.D. Strain Relief Fittings Metric

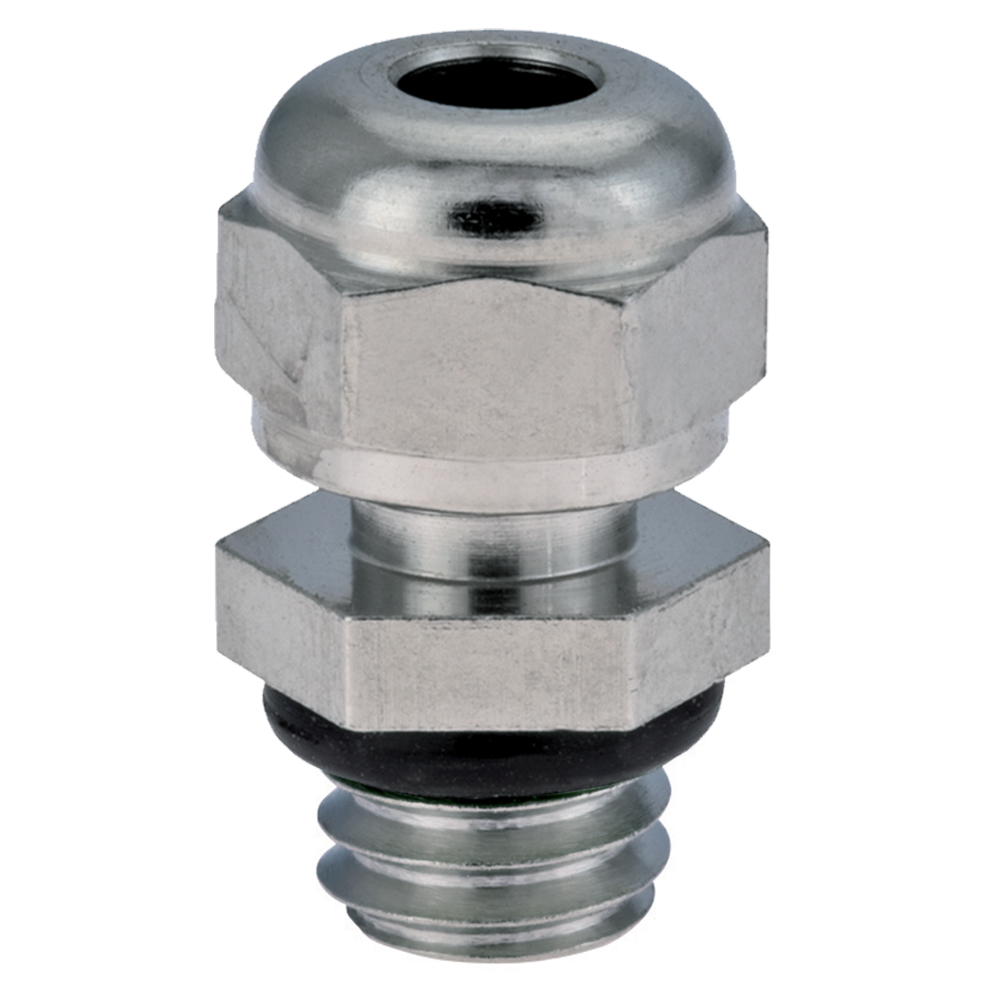

Nickel Plated Brass M6 x 1.0 Mini WADI Fitting

Thread Range: M6 x 1.0

Locking Nut Sold Separately

Sealcon # CD06MW-BR
Cable Range .08" - .13" (2 - 3.2 mm)
Color Nickel
Hummel # 1.106.0601.50
Material Nickel Plated Brass

Hole Diameter (A)
.24" (6 mm)
Body Length (B)
.39" (10 mm)
Thread Length (D)
.24" (6 mm)
Wrench Flat (F1/F)
.31" (8 mm)

Suggested Clearance Hole for Non-Threaded Mounting


  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE

Also Available in Elongated and EMI

This Miniature Nickel Plated Brass Strain Relief with M6 x 1 Thread will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

70 psig (5 bar) Type Nema 4x - IP 68


  • Fittings: Nickel Plated Brass
  • Form Seal: Thermoplastic Elastomer (TPE)
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring:

Operating Temperature

-20°C to 100°C (-4°F to 212°F)
