CD07AW-BR

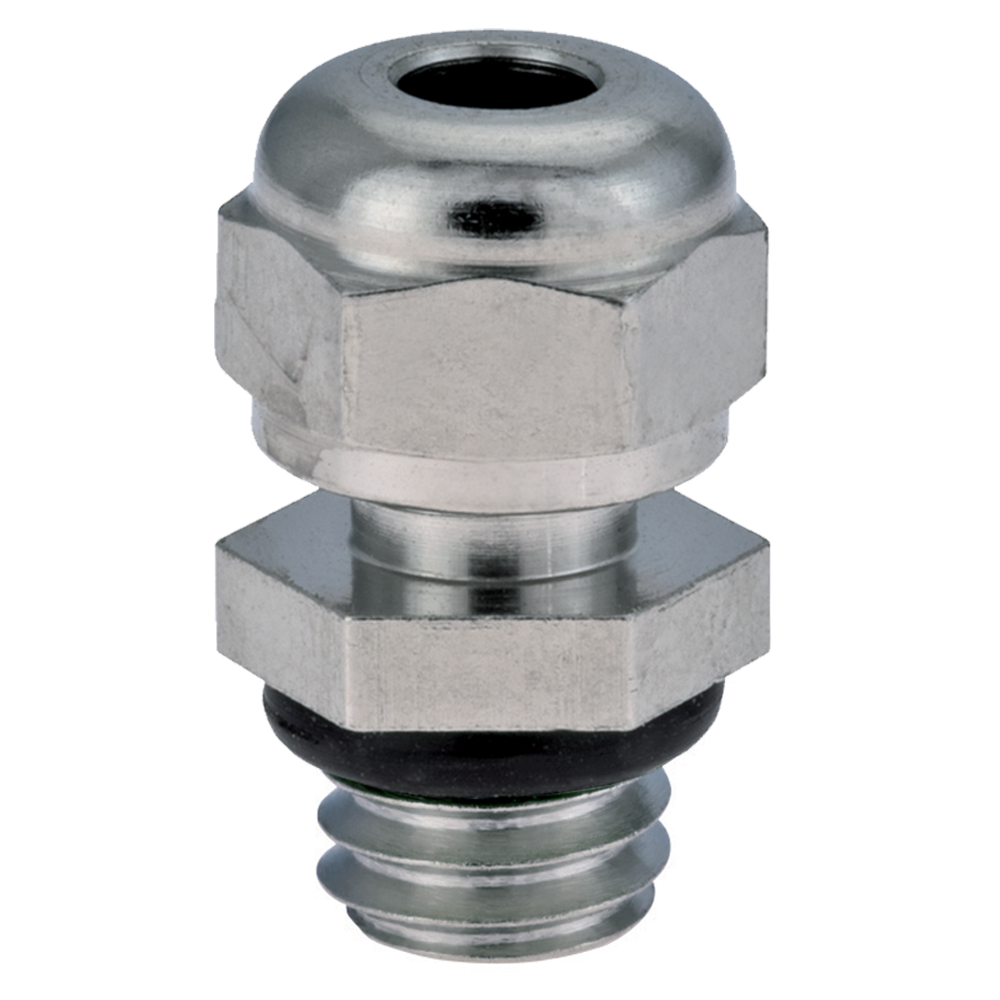

Nickel Plated Brass PG 7 Mini WADI Fitting

Thread Range: PG 7

Locking Nut Sold Separately

Sealcon # CD07AW-BR
Cable Range .08" - .18" (2 - 4.5 mm)
Color Nickel
Hummel # 1.112.0708.01
Hummel HSK-MINI
Material Nickel Plated Brass

Hole Diameter (A)
.56" (14.3 mm)
Body Length (B)
.56" (14.3 mm)
Thread Length (D)
.14" (3.5 mm)
Wrench Flat (F1/F)
.43" (11 mm) / .59" (15 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features

  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE

This Miniature Nickel Plated Brass Strain Relief with PG 7 Thread will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

70 psig (5 bar) NEMA 4x - IP 68

Materials

  • Fittings: Nickel Plated Brass
  • Form Seal: Thermoplastic Elastomer (TPE)
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring:

Operating Temperature

-20°C to 100°C (-4°F to 212°F)
