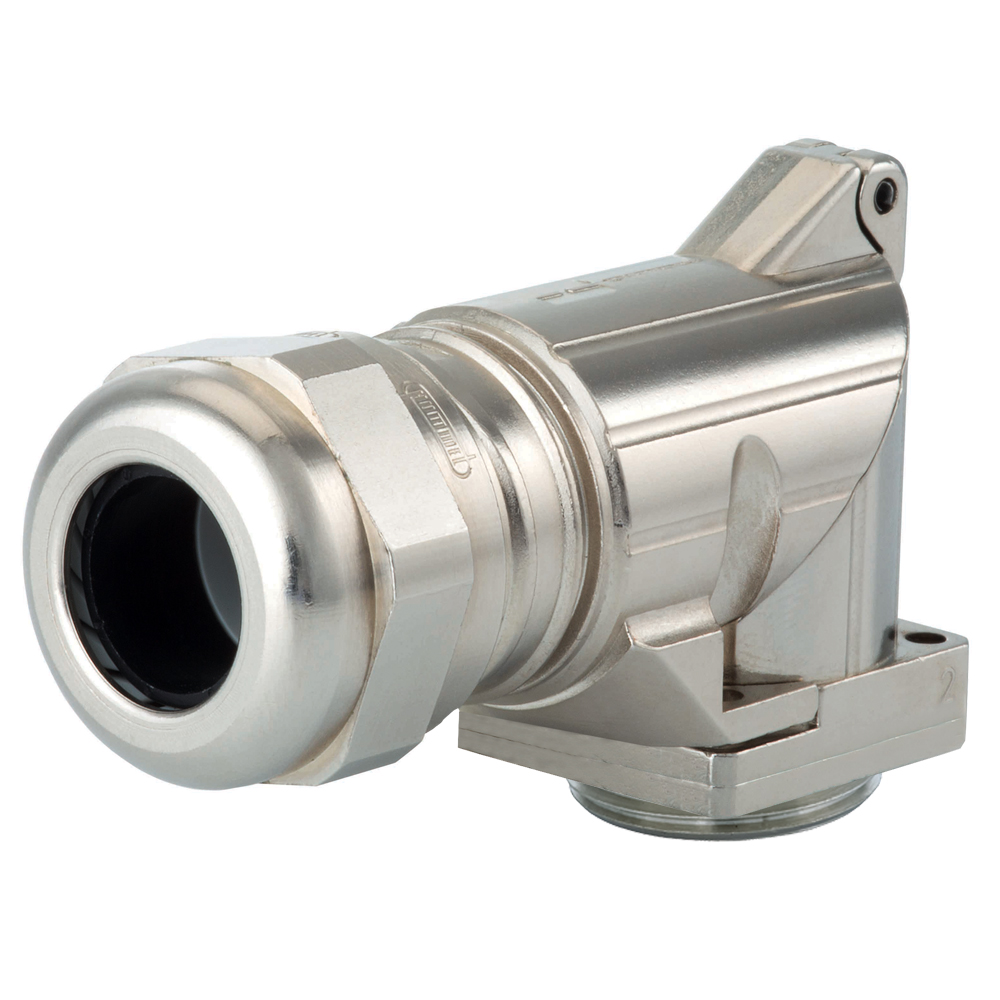

Nickel Plated Brass M20 x 1.5 Snap Elbow Fitting
Thread Type: M20 x 1.5
Locking Nut Separately
Sealcon # ED20MR-BR
Cable Range .28" - .47" (7 - 12 mm)
Color Nickel
Hummel # 1.309.2020.51
Hummel HSK-M-W
Material Nickel Plated Brass
Hole Diameter (A)
.79" (20 mm)
Body Length (L)
2.6" (66 mm)
Body Height (H)
1.5" (38 mm)
Thread Length (D)
.3" (7.5 mm)
Wrench Flat (E)
.98" (25 mm)
Suggested Clearance Hole for Non-Threaded Mounting
Features
- Flame protected - V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
- Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable - Rugged Construction
- Environmentally compliant - RoHS & Deca BDE
This Nickel Plated Brass Strain Relief with M20 x 1.5 Thread will provide your application with a product made of exceptional quality.
Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.
Technical Data
Pressure Rating
IP 68
Materials
- Fittings: Nickel Plated Brass
- Form Seal: Buna-N
- Optional O-Ring: FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-40°C to 100°C (-40°F to 212°F)
Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant
RoHS Compliance
Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
EAC
Association of German Electrical Engineers
