Sealcon #: S7.001.912.103
M23 Signal Connector Insert Configurations

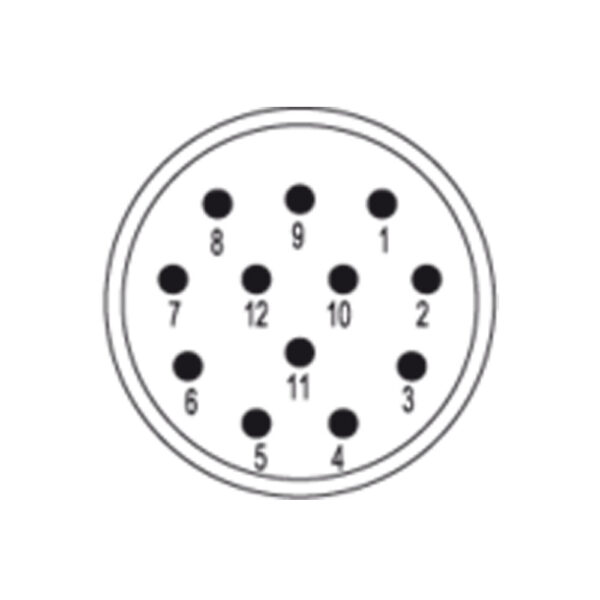

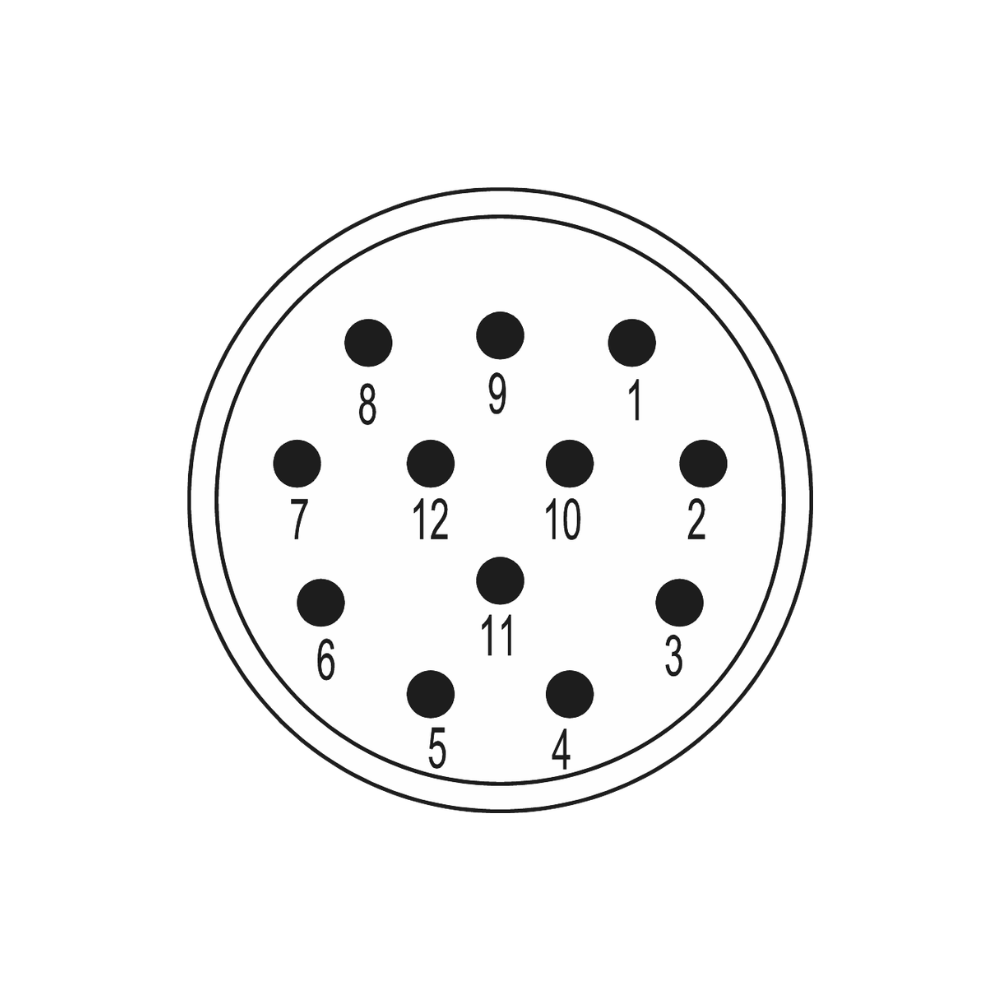

Hummel: M 23 Signal Insert, 12-pole, Pinout clockwise
Hummel #: 7.001.912.103
Insert – with Solder Contacts
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Number of Positions: 12
Number of Contacts: 12
Contact Ø (mm): 1
Nominal Current [A]: 8
Nominal Voltage [V~]: 200
Test Voltage (Breakdown Voltage) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3 INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.912.103
Insert 12-pole 12 x 1 mm Number of Positions: 12
Number of Contacts: 12
Contact-Ø (mm): 1
Nominal Current1) [A]: 8
Nominal Voltage2) [V~] degree of protection 33): 200
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3S7.001.912.104
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 2500V~
Insulation resistance signal > 10^10 Ω
max. contact resistance signal 3 mOhm
max. contact resistance power 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.912.107
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.912.108
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.912.118
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.912.127
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.001.912.137
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.103
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.104
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.107
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.108
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.118
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.127
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.002.912.137
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.003.912.101
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Signal connection cross section 0.08 – 1.5 mm²
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.003.912.102
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Signal connection cross section 0.08 – 1.5 mm²
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.004.912.101
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Signal connection cross section 0.08 – 1.5 mm²
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.004.912.102
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Signal connection cross section 0.08 – 1.5 mm²
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 840V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)S7.004.912.111
Insert 12-pole 12 x 1 mm Contact Ø signal 1 mm
Signal connection cross section 0.08 – 1.5 mm²
Rated current signal 8 A
Rated voltage at pollution level 3 signal 200V~
Test voltage signal 1500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhm
Temperature range -40°C to +125°C
Pollution level 3
Flammability V-0 (UL 94)
