Sealcon #: S7.001.983.108

M16 Signal Connector Insert Configurations

Hummel: M 16 Inserts, 3-pole (3x2mm)

Hummel #: 7.001.983.108

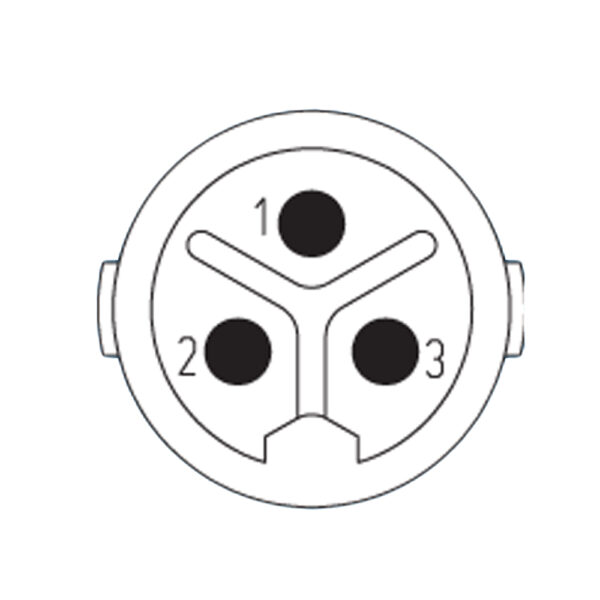

M16 Connector 3-Pole (3x2mm) Socket (Female) Insert with dip solder contacts length 10mm

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Electrical Data PDF

Number of Positions: 3 (3 x 2 mm)

Number of Contacts: 3

Contact Ø (mm): 2

AWG [mm²]: 0.5 - 2.5

Nominal Current [A]: 20

Nominal Voltage [V~]: 400

Test Voltage (Breakdown Voltage) [V~]: 2500

Insulation Resistance [MΩ]: >10¹⁰

Max. Contact Resistance [mΩ]: 3
