Insert 3-pole (3 x 2 mm) Socket Contact | S7.010.982.002

Sealcon #: S7.010.982.002

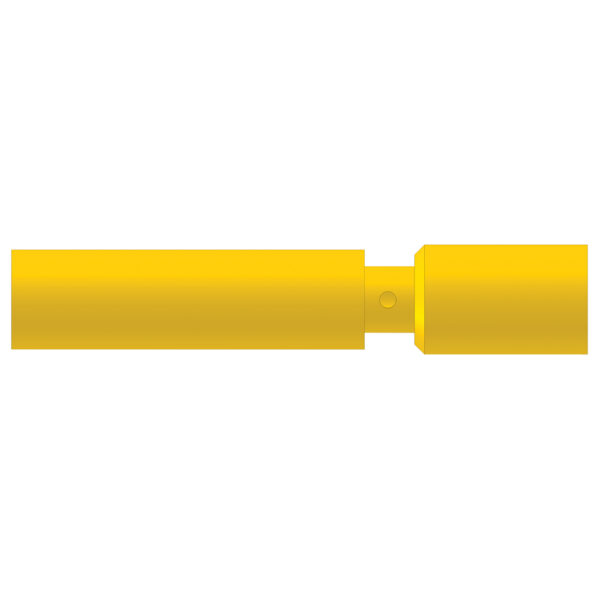

Crimp Socket 2mm Req.Contact 3 x 2mm
Hummel: M 16 Inserts, 4+3+PE 320V
Hummel #: 7.010.982.002

This Contact is Required for specific Insert Configurations.
Details for configurations can be found under Technical Data.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Crimp Range1 mm2 - 2.5 mm2 AWG 17 - AWG 14
PDF DOWNLOADS
Catalog Page
  • Features

    Contacts are specific to the Inserts and number of Poles on your Connector.

    • There are two types of Contacts: Pins and Sockets. Pins are installed as Male connections and Sockets are installed as Female connections.
    • Each Pin or Socket contact has a different installation based on the number of Contacts needed and size of the Contact.

    • For example, if your Connector has a 3-Pole Insert labeled (3 x 1mm), you need three 1mm Contacts for your Insert. Likewise, if your Connector has a 3-Pole insert labeled (3 x 2mm), you need three 2mm contacts.
    • Contacts are not universal, so check to see if there is a Required Contact for your installation.
    • If you have any questions please submit a quote and one of our experts will contact you to verify you have the correct configuration for your desired Connector.



  • This Contact Is Required for M16 Signal Connector:

    Pin (Male) Insert 3-Pole (3 x 2mm)

    Type of Contact: Crimp Socket 2 mm Machined

    Crimp Range: 1 mm2 - 2.5 mm2 AWG 17 - AWG 14

    Click Here for Crimp Tool Settings

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.001.903.108
    Insert 3-pole (3 x 1 mm)3 x 1 mmNumber of Positions: 3 (3 x 1 mm)
    Number of Contacts: 3
    Contact-Ø (mm): 1
    AWG [mm2]: 0,14 - 1
    Nominal Current1) [A]: 8
    Nominal Voltage2) [V~] degree of protection 34): 400
    Test Voltage (Breakdown Voltage) 3) [V~]: 2500
    Insulation Resistance [MΩ]: >1010
    Max. Contact Resistance [mΩ]: 3
    S7.001.903.118
    Insert 3-pole (3 x 1 mm)3 x 1 mmContact-Ø[mm] 1
    AWG [mm²] 0,14-1
    Nominal current ¹)[A] 8
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 400
    Test voltage (Breakdown voltage) ³) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.903.127
    Insert 3-pole (3 x 1 mm)3 x 1 mmContact-Ø[mm] 1
    AWG [mm²] 0,14-1
    Nominal current ¹)[A] 8
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 400
    Test voltage (Breakdown voltage) ³) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.001.903.137
    Insert 3-pole (3 x 1 mm)3 x 1 mmContact-Ø[mm] 1
    AWG [mm²] 0,14-1
    Nominal current ¹)[A] 8
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 400
    Test voltage (Breakdown voltage) ³) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
    S7.003.903.101
    Insert 3-pole (3 x 1 mm)3 x 1 mmNumber of Positions: 3 (3 x 1 mm)
    Number of Contacts: 3
    Contact Ø (mm): 1
    AWG [mm2]: 0.14 - 1
    Nominal Current1) [A]: 8
    Nominal Voltage2) [V~]: 400
    Test Voltage (Breakdown Voltage) 3) [V~]: 2500
    Insulation Resistance [MΩ]: >1010
    Max. Contact Resistance [mΩ]: 3
    S7.003.903.102
    Insert 3-pole (3 x 1 mm)3 x 1 mmContact-Ø[mm] 1
    AWG [mm²] 0,14-1
    Nominal current ¹)[A] 8
    Nominal voltage ²)[V˜] 630
    Nominal voltage ²)[V˜] 400
    Test voltage (Breakdown voltage) ³) [V˜] 2500
    Insulation resistance [MΩ]>10
    Max. contact resistance [mΩ] 3
  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.982.002
    Crimp Socket 2 mm Machined1 mm2 - 2.5 mm2 AWG 17 - AWG 14

RELATED PINS

RELATED SOCKETS

RELATED ACCESSORIES
