Sealcon #: S7.001.903.108
M16 Signal Connector Insert Configurations
Hummel: M 16 Inserts, 3-pole (3x1mm)
Hummel #: 7.001.903.108

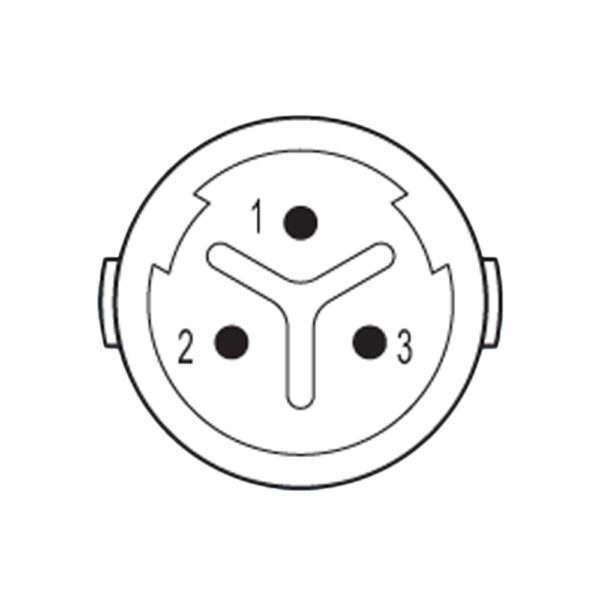

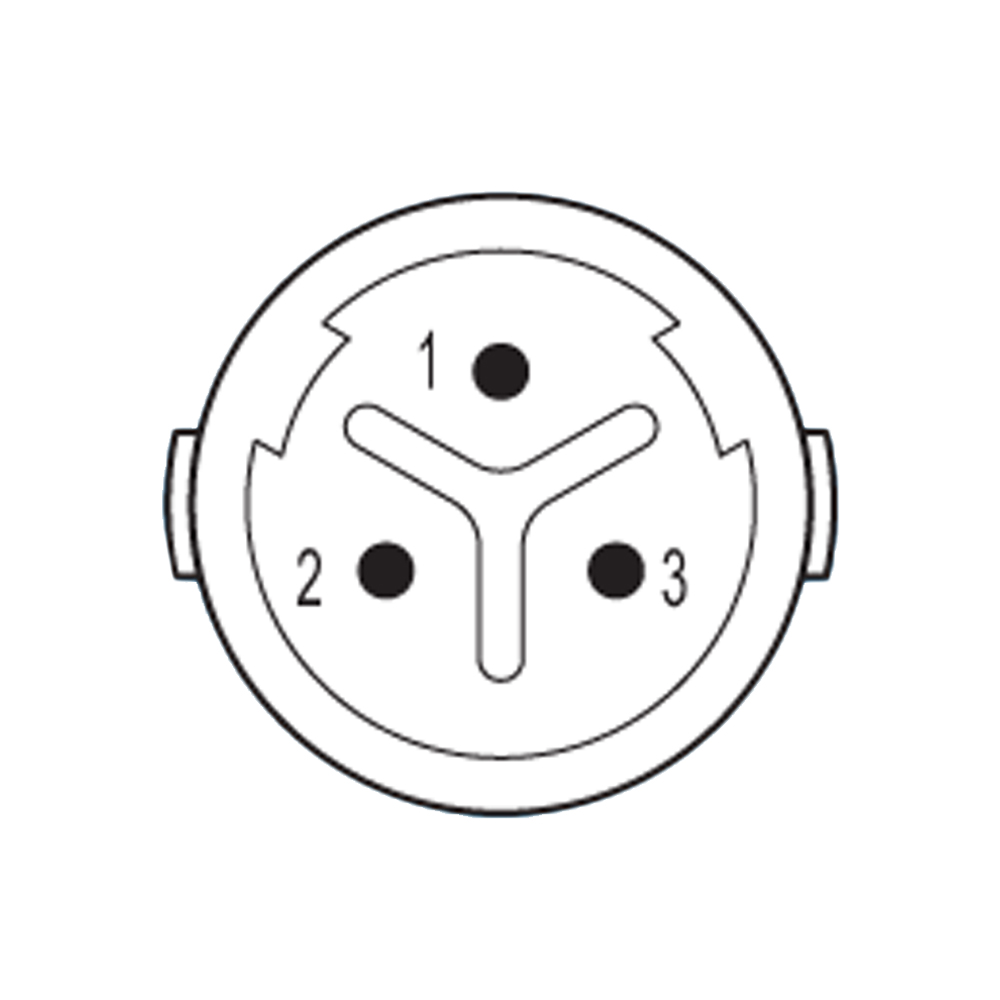

M16 Connector 3-Pole (3x1mm) Socket (Female) Insert with dip solder contact length 10mm
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Number of Positions: 3 (3 x 1 mm)
Number of Contacts: 3
Contact Ø (mm): 1
AWG [mm2]: 0,14 - 1
Nominal Current [A]: 8
Nominal Voltage [V~]: 400
Test Voltage (Breakdown Voltage) [V~]: 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3 INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.985.118
Insert 15-Pole (12+3) 12 x 0.8 mm/3 x 1.25 mm Number of Positions: 12 + 3
Number of Contacts: 12 | 3
Contact-Ø (mm): 0.8 | 1.25
AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5
Nominal Current1) [A]: 3 | 10
Nominal Voltage2) [V~] degree of protection 34): 24 | 60
Test Voltage (Breakdown Voltage) 3) [V~]: 1500 | 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3 |3S7.001.985.127
Insert 15-Pole (12+3) 12 x 0.8 mm/3 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,5-1,5
Nominal current ¹)[A] 3/10
Nominal voltage ²)[V˜] 60 / 160
Nominal voltage ²)[V˜] 24 / 60
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.001.985.137
Insert 15-Pole (12+3) 12 x 0.8 mm/3 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,5-1,5
Nominal current ¹)[A] 3/10
Nominal voltage ²)[V˜] 60 / 160
Nominal voltage ²)[V˜] 24 / 60
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.985.101
Insert 15-Pole (12+3) 12 x 0.8 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,5-1,5
Nominal current ¹)[A] 3/10
Nominal voltage ²)[V˜] 60 / 160
Nominal voltage ²)[V˜] 24 / 60
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.985.102
Insert 15-Pole (12+3) 12 x 0.8 mm/3 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,5-1,5
Nominal current ¹)[A] 3/10
Nominal voltage ²)[V˜] 60 / 160
Nominal voltage ²)[V˜] 24 / 60
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.010.901.001
Inset 3-pole (3 x 1) 3 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-1
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 630
Nominal voltage ²)[V˜] 400
Test voltage (Breakdown voltage) ³) [V˜] 2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.010.901.002
Insert 3-pole (3 x 1 mm);Insert 20-pole (4 x 2) + 12 3 x 1 mm;12 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-1
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 630
Nominal voltage ²)[V˜] 400
Test voltage (Breakdown voltage) ³) [V˜] 2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.010.901.012
Insert 3-pole (3 x 1 mm);Insert 20-pole (4 x 2) + 12 3 x 1 mm;12 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-1
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 630
Nominal voltage ²)[V˜] 400
Test voltage (Breakdown voltage) ³) [V˜] 2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3
