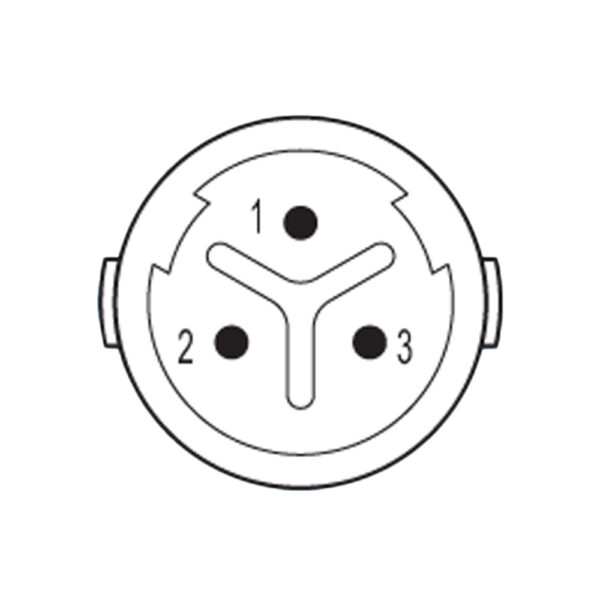

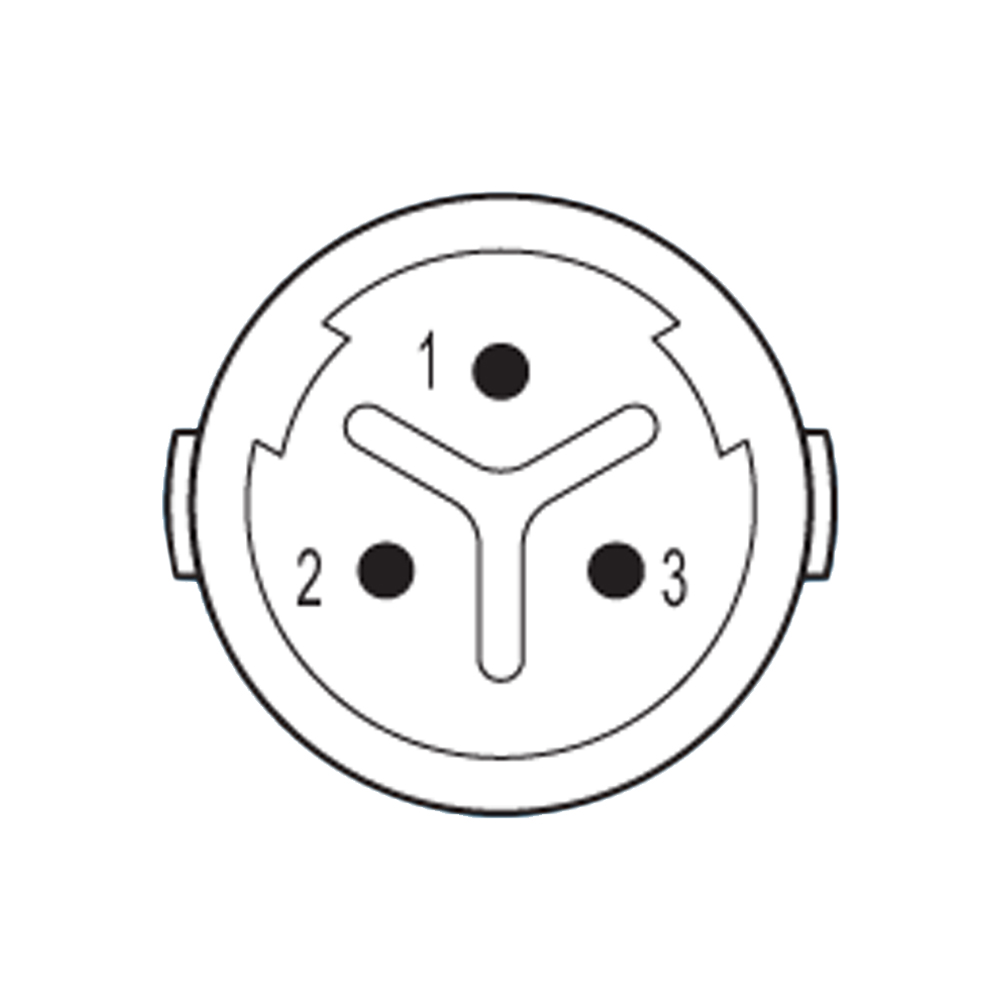

3-Pole (3x1mm) Socket Insert without contacts | S7.003.903.102

Sealcon #: S7.003.903.102

Socket (Female) Insert without contacts

Hummel: M 16 Inserts, 3-pole (3x1mm)

Hummel #: 7.003.903.102

M16 Connector 3-Pole (3x1mm) Socket (Female) Insert without contacts

Add to Quote

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Catalog Page

Part Number	Add to Quote	Number of Poles	Required Contacts	Electrical Data
S7.001.910.108	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Number of Positions: 10 Number of Contacts: 10 Contact-Ø (mm): 1 AWG [mm²]: 0.14 - 0.75 Nominal Current¹⁾ [A]: 8 Nominal Voltage²⁾ [V~] ^{degree of protection 3}^⁴⁾: 160 Test Voltage (Breakdown Voltage) ³⁾ [V~]: 1500 Insulation Resistance [MΩ]: >10⁶ Max. Contact Resistance [mΩ]: 3
S7.001.910.118	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.910.127	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.910.137	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.910.101	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.910.102	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.053.910.101	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.053.910.102	Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-pole	10 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-0,75 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 230 Nominal voltage ²)[V˜] 160 Test voltage (Breakdown voltage) ³) [V˜] 1500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3

APPROVALS

3-Pole (3x1mm) Socket Insert without contacts | S7.003.903.102

3-Pole (3x1mm) Socket Insert without contacts | S7.003.903.102

INSERTS

APPROVALS

RELATED PINS

3-Pole (3x1mm) Pin Insert with dip solder contact length 10mm | S7.001.903.127

3-Pole (3x1mm) Pin Insert with dip solder contact length 17mm | S7.001.903.137

3-Pole (3x1mm) Pin Insert without contacts | S7.003.903.101

Inset 3-pole (3 x 1) Pin Contact | S7.010.901.001

RELATED SOCKETS

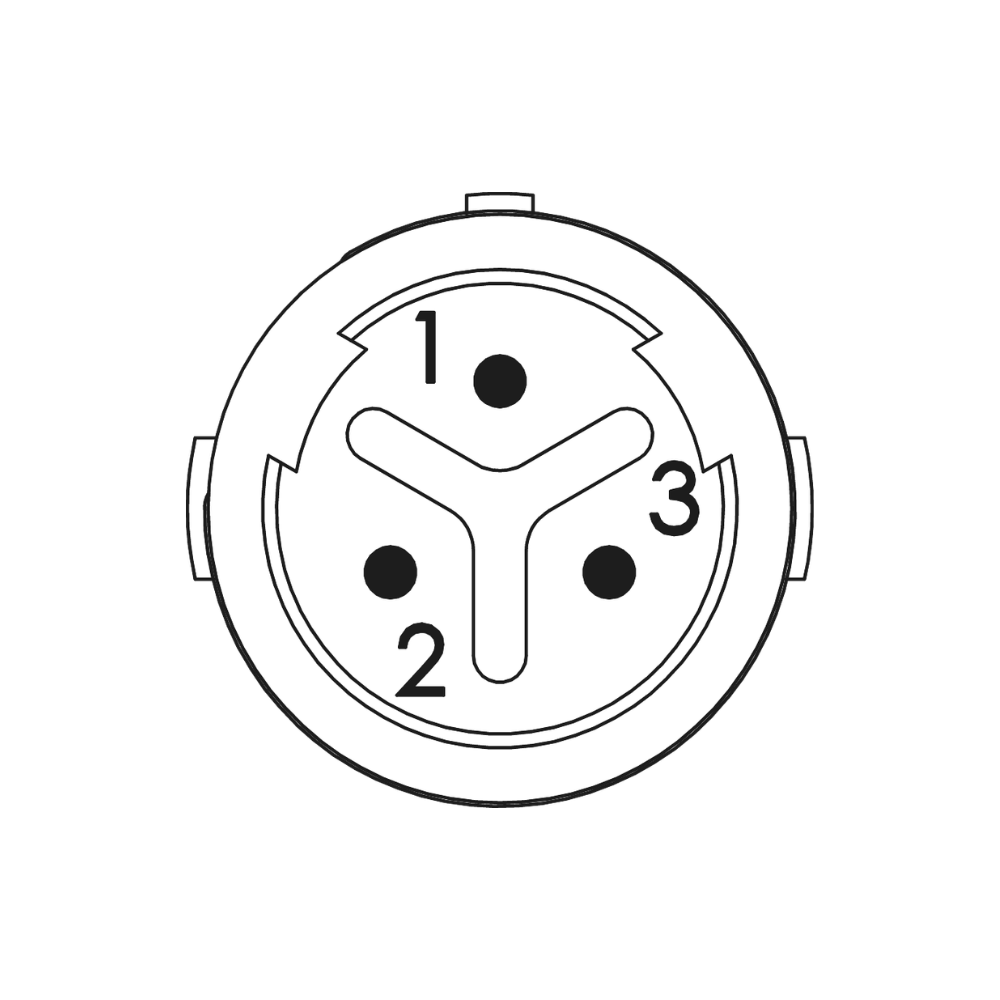

3-Pole (3 x 1mm) Contacts & Configurations M16 Signal Inserts | S7.001.903.108
