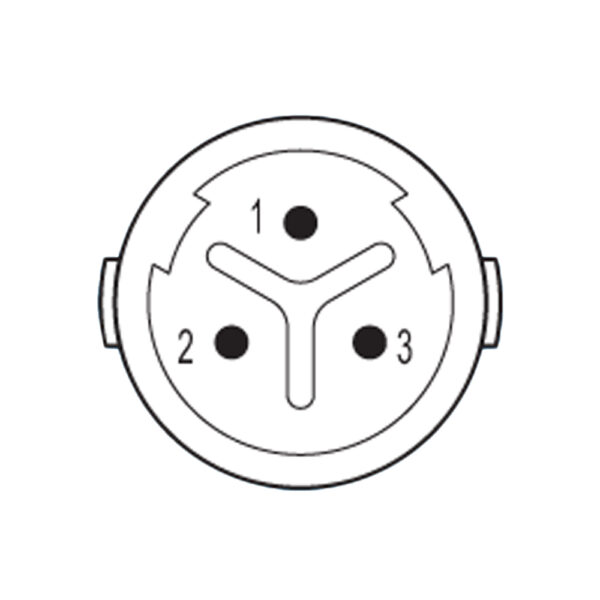

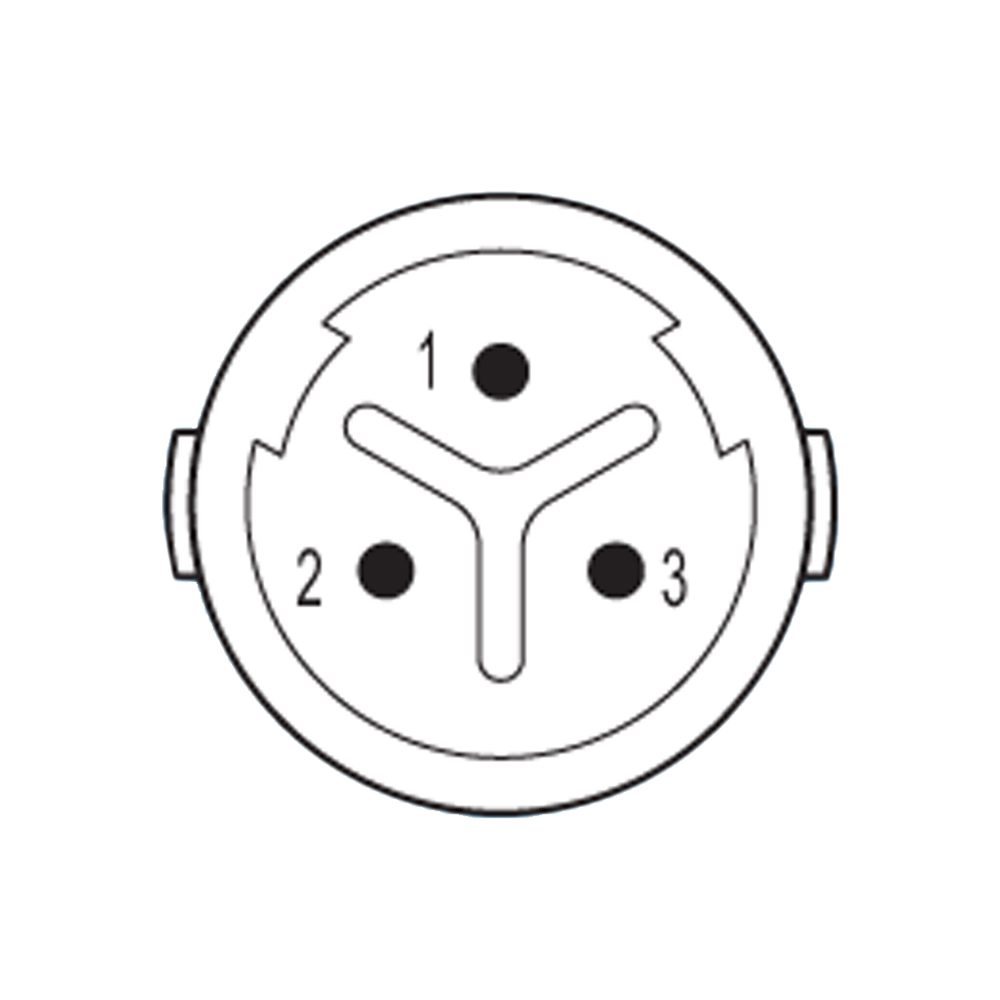

3-Pole (3x1mm) Pin Insert without contacts | S7.003.903.101

Sealcon #: S7.003.903.101

Pin Insert without contacts

Hummel: M 16 Inserts, 3-pole (3x1mm)

Hummel #: 7.003.903.101

M16 Connector 3-Pole (3x1mm) Pin (Male) Insert without contacts

Add to Quote

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Catalog Page

Part Number	Add to Quote	Number of Poles	Required Contacts	Electrical Data
S7.001.903.108	Add to Quote This product is already in your quote request list. View Quote Request	Insert 3-pole (3 x 1 mm)	3 x 1 mm	Number of Positions: 3 (3 x 1 mm) Number of Contacts: 3 Contact-Ø (mm): 1 AWG [mm²]: 0,14 - 1 Nominal Current¹⁾ [A]: 8 Nominal Voltage²⁾ [V~] ^{degree of protection 3}^⁴⁾: 400 Test Voltage (Breakdown Voltage) ³⁾ [V~]: 2500 Insulation Resistance [MΩ]: >10¹⁰ Max. Contact Resistance [mΩ]: 3
S7.001.903.118	Add to Quote This product is already in your quote request list. View Quote Request	Insert 3-pole (3 x 1 mm)	3 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-1 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 630 Nominal voltage ²)[V˜] 400 Test voltage (Breakdown voltage) ³) [V˜] 2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.903.127	Add to Quote This product is already in your quote request list. View Quote Request	Insert 3-pole (3 x 1 mm)	3 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-1 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 630 Nominal voltage ²)[V˜] 400 Test voltage (Breakdown voltage) ³) [V˜] 2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.001.903.137	Add to Quote This product is already in your quote request list. View Quote Request	Insert 3-pole (3 x 1 mm)	3 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-1 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 630 Nominal voltage ²)[V˜] 400 Test voltage (Breakdown voltage) ³) [V˜] 2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3
S7.003.903.101	Add to Quote This product is already in your quote request list. View Quote Request	Insert 3-pole (3 x 1 mm)	3 x 1 mm	Number of Positions: 3 (3 x 1 mm) Number of Contacts: 3 Contact Ø (mm): 1 AWG [mm²]: 0.14 - 1 Nominal Current¹⁾ [A]: 8 Nominal Voltage²⁾ [V~]: 400 Test Voltage (Breakdown Voltage) ³⁾ [V~]: 2500 Insulation Resistance [MΩ]: >10¹⁰ Max. Contact Resistance [mΩ]: 3
S7.003.903.102	Add to Quote This product is already in your quote request list. View Quote Request	Insert 3-pole (3 x 1 mm)	3 x 1 mm	Contact-Ø[mm] 1 AWG [mm²] 0,14-1 Nominal current ¹)[A] 8 Nominal voltage ²)[V˜] 630 Nominal voltage ²)[V˜] 400 Test voltage (Breakdown voltage) ³) [V˜] 2500 Insulation resistance [MΩ]>10 Max. contact resistance [mΩ] 3

APPROVALS

3-Pole (3x1mm) Pin Insert without contacts | S7.003.903.101

3-Pole (3x1mm) Pin Insert without contacts | S7.003.903.101

INSERTS

APPROVALS

RELATED PINS

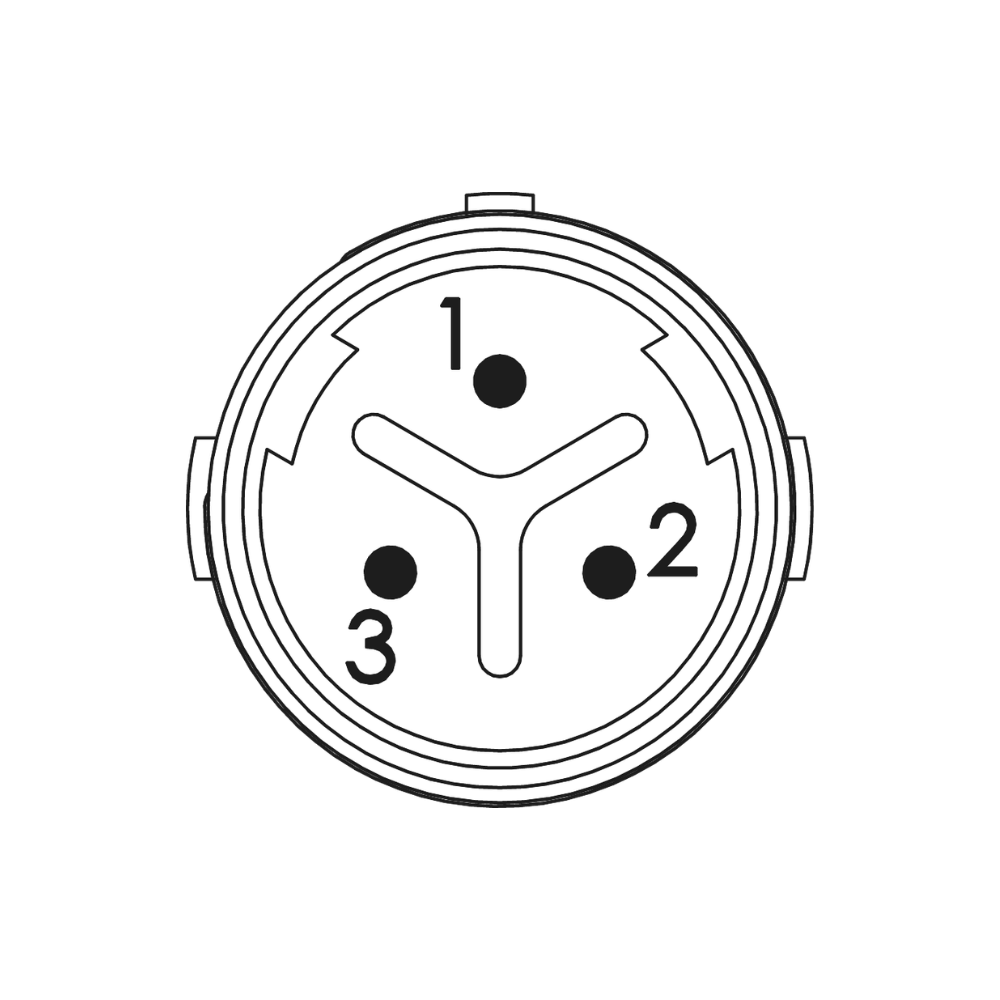

3-Pole (3x1mm) Pin Insert with dip solder contact length 10mm | S7.001.903.127
