Insert 20-pole (4 x 2 + 12) Pin Insert without Contacts | S7.003.920.101

Sealcon #: S7.003.920.101

Pin (Male) Insert without Contacts

Hummel: Fast Ethernet PoE, Inserts

Hummel #: 7.003.920.101

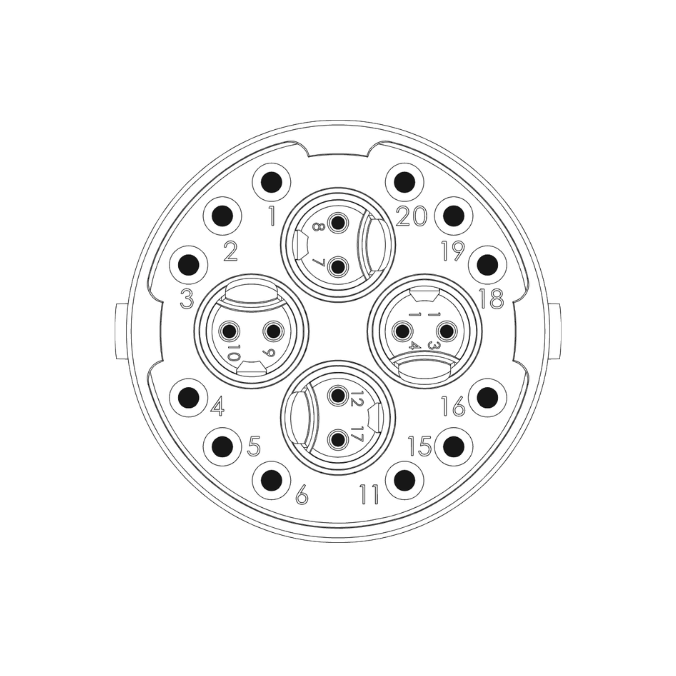

M23 Profinet Connector 20-pole (4 x 2 + 12) Pin (Male) Insert without Contacts

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
