Sealcon #: CX11MA-BR
Cable Range: 3.27" - 3.54" (83 to 90 mm)
Color: Nickel Plated Brass
Material: Nickel Plated Brass
Hummel: HSK-XL
Hummel #: 1.106.1100.51
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 4.33" (110 mm) |
|---|---|
| Body Length (B) | 2.05" (52 mm) |
| Thread Length (D) | 0.79" (20 mm) |
| Wrench Flat (F1) | 4.72" (120 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from 3.27″ – 3.54″ (83 to 90 mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

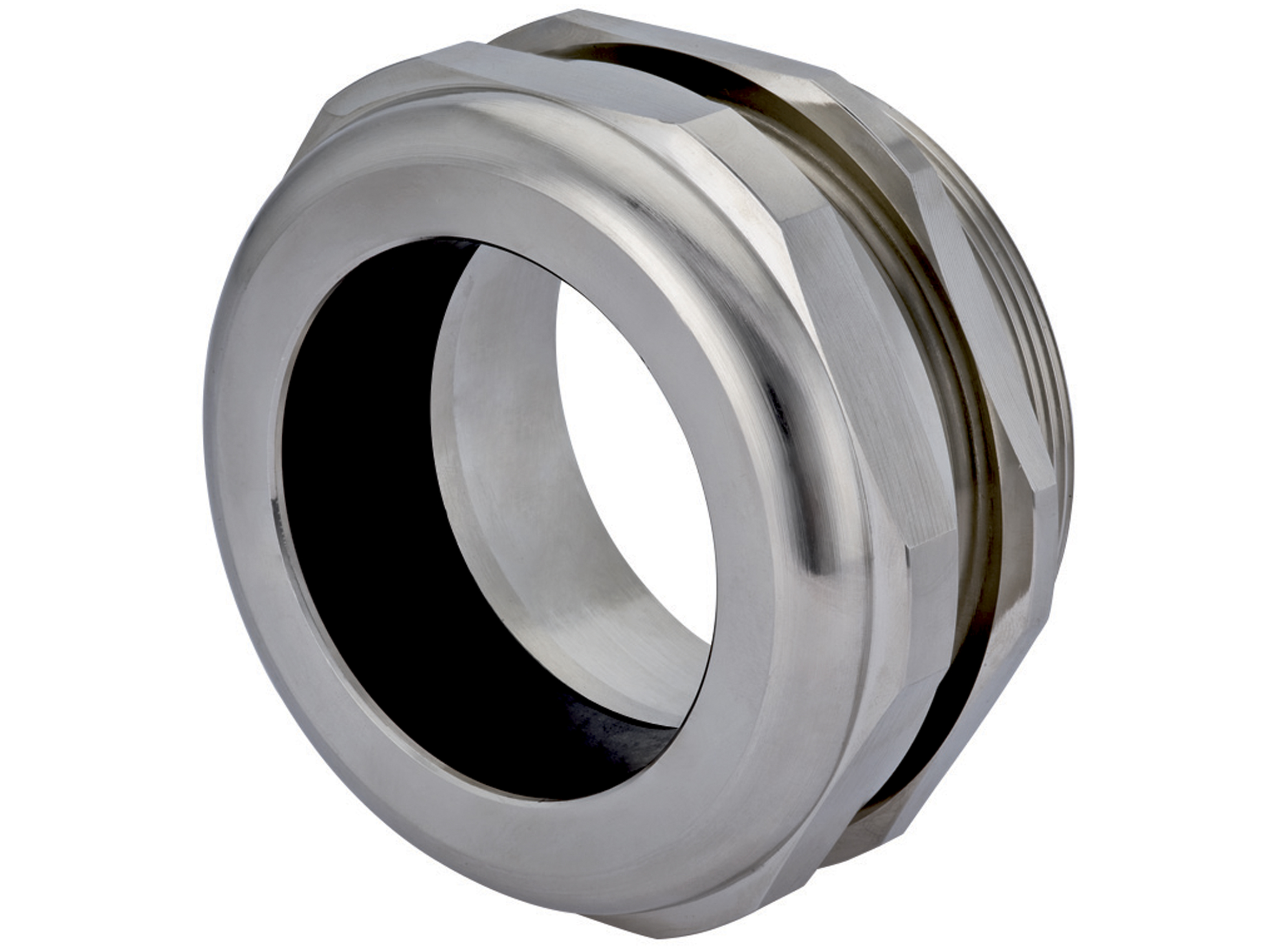

This Nickel Plated Brass Strain Relief with M110 x 2 Thread will provide your application with a product made of exceptional quality.
The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.
-
Pressure RatingMaterials
IP 68- Fittings: Nickel Plated Brass
- Form Seal: Thermoplastic Elastomer (TPE)
- Optional Seal Ring: Silicone upon request
Operating Temperature
-20C° to 100C° (-4°F to 212°F)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
