Nickel Plated Brass WADI XL - Largest Cable O.D. Strain Relief Fittings Metric

CX11MA-BR

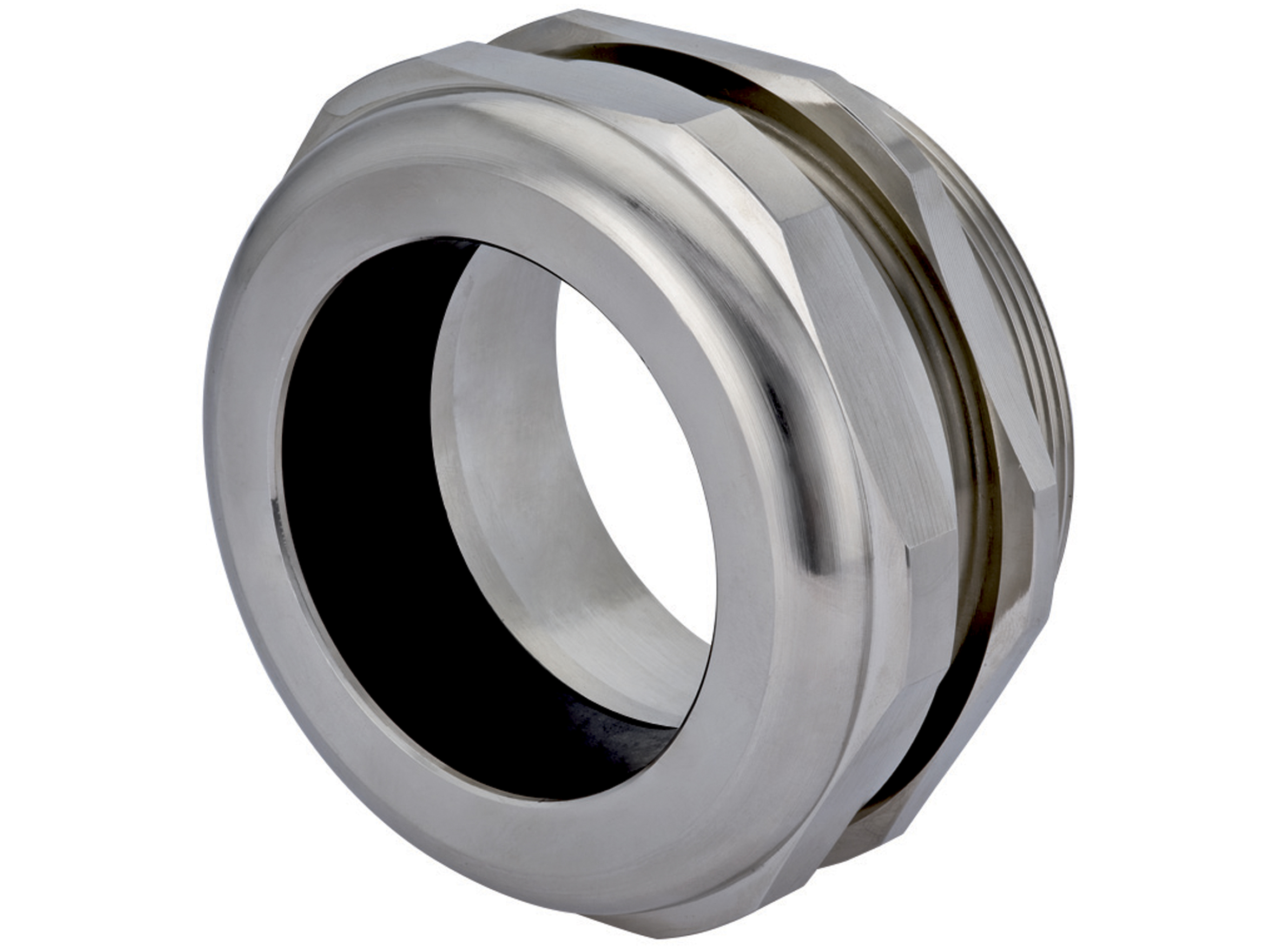

Nickel Plated Brass WADI XL M110 x 2 Thread

Thread Type: M110 x 2

Locking Nut Sold Separately

Sealcon # CX11MA-BR
Cable Range 3.27" - 3.54" (83 - 90 mm)
Color Nickel
Hummel # 1.106.1100.51
Hummel HSK-XL
Material Nickel Plated Brass

Hole Diameter (A)
4.33" (110 mm)
Body Length (B)
2.05" (52 mm)
Thread Length (D)
.79" (20 mm)
Wrench Flat (F1/F)
4.72" (120 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features

  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE


This Nickel Plated Brass Strain Relief with M110 x 2 Thread will provide your application with a product made of exceptional quality.

The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

Technical Data

Pressure Rating

IP 68

Materials

  • Fittings: Nickel Plated Brass
  • Form Seal: Thermoplastic Elastomer (TPE)
  • Optional O-Ring:
  • Optional Seal Ring: Silicone upon request

Operating Temperature

-20°C to 100°C (-4°F to 212°F)
