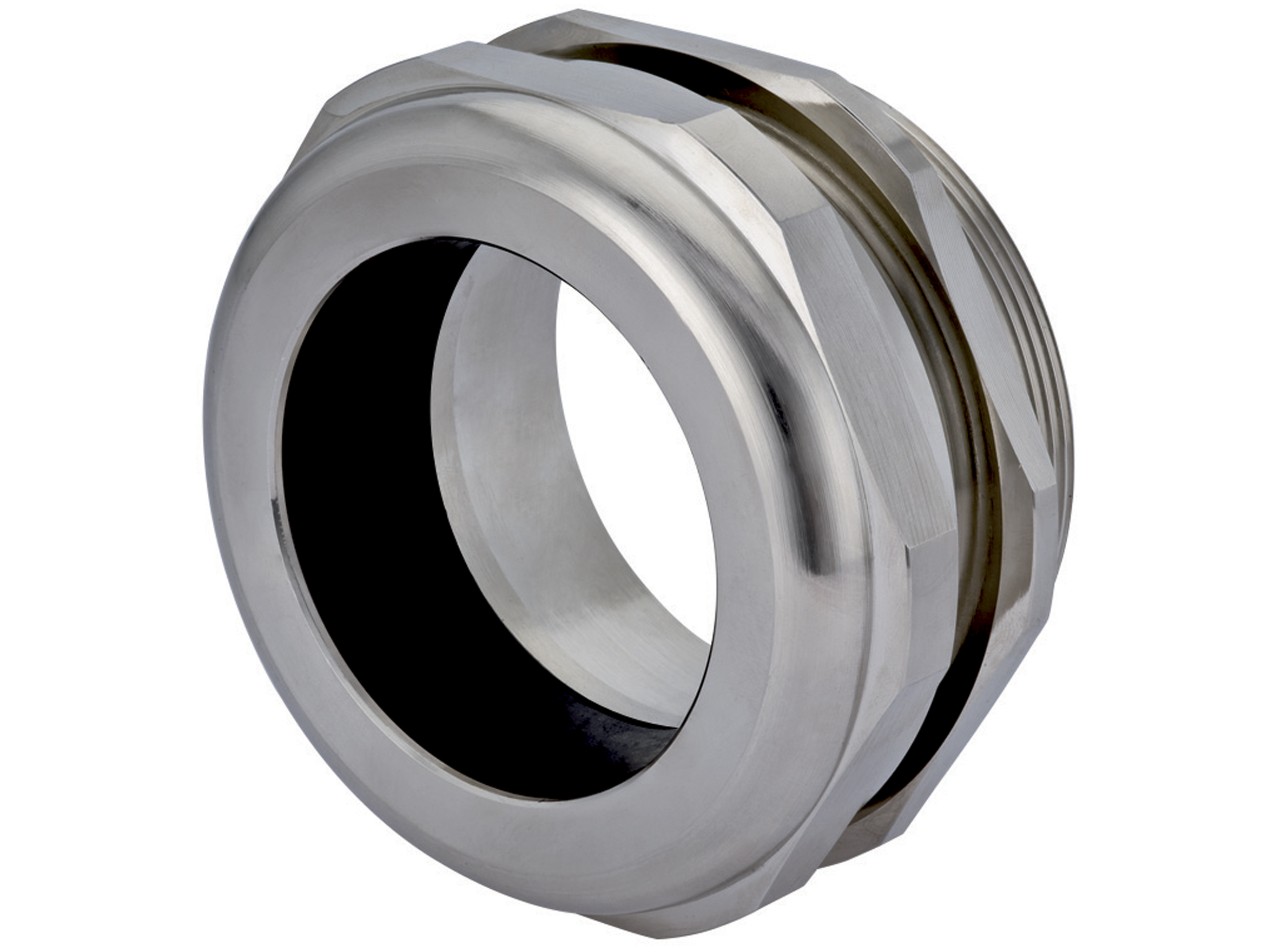

Nickel Plated Brass WADI XL - Largest Cable O.D. Strain Relief Fittings Metric


Nickel Plated Brass WADI XL M90 x 1.5 Thread

Thread Type: M90 x 2

Locking Nut Sold Separately

Sealcon # CX90MB-BR
Cable Range 2.68" - 2.95" (68 - 75 mm)
Color Nickel Plated Brass
Hummel # 1.106.9000.51
Hummel HSK-XL
Material Nickel Plated Brass

Hole Diameter (A)
3.54" (90 mm)
Body Length (B)
2.05" (52 mm)
Thread Length (D)
.59" (15 mm)
Wrench Flat (F1/F)
3.94" (100 mm)

Suggested Clearance Hole for Non-Threaded Mounting


  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE

This Nickel Plated Brass Strain Relief with M90 x 2 Thread will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

IP 68


  • Fittings: Nickel Plated Brass
  • Form Seal: Thermoplastic Elastomer (TPE)
  • Optional O-Ring:
  • Optional Seal Ring: Silicone upon request

Operating Temperature

-20°C to 100°C (-4°F to 212°F)
