Sealcon #: S7.486.500.000
(housing only)

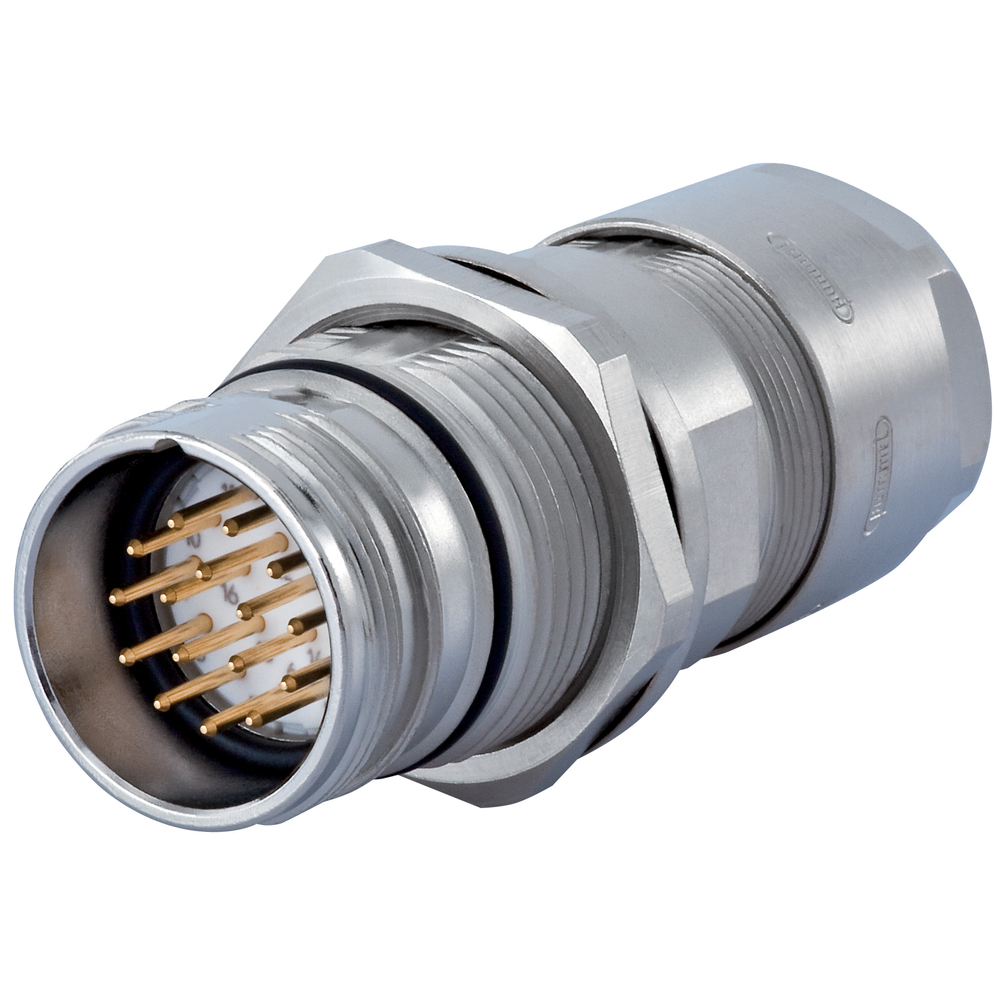

M23 Signal Panel Connector with Strain Relief, EMI, Male Thread Standard Threaded TWILOCK
Cable Range: .28" - .47" (7 - 12 mm)
Hummel: M23 Signal Panel Connector with Strain Relief, EMC
Hummel #: 7.486.500.000
Inserts & Contacts sold separately.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Fewer parts
- One step cable assembly with optional EMI shielding
- No tools required to insert and extract contacts
- Crimp contacts machined or on tape
- Solder contacts for manual soldering or dip soldering for PC boards
- SLS (Spring Loaded Sockets) for vibrating environments
- Color coded spacers for male and female inserts
INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.001.906.103
Insert 6-pole 6 x 2 mm Number of Positions: 6
Number of Contacts: 6
Contact-Ø (mm): 2
Nominal Current1) [A]: 20
Nominal Voltage2) [V~] degree of protection 33): 300
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3S7.001.907.103
Insert 7-pole 7 x 2 mm Number of Positions: 7
Number of Contacts: 7
Contact-Ø (mm): 2
Nominal Current1) [A]: 20
Nominal Voltage2) [V~] degree of protection 33): 300
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3S7.001.912.103
Insert 12-pole 12 x 1 mm Number of Positions: 12
Number of Contacts: 12
Contact-Ø (mm): 1
Nominal Current1) [A]: 8
Nominal Voltage2) [V~] degree of protection 33): 200
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3S7.001.917.103
Insert 17-pole 17 x 1 mm Contact Ø signal 1 mm
Rated current signal 8 A
Rated voltage at pollution level 3 signal 160V~
Test voltage signal 500V~
Insulation resistance signal > 10^8 Ω
max. contact resistance signal 3 mOhmS7.001.919.103
Insert 19-pole (16 + 3) 16 x 1 mm 3 x 1.5 mm Number of Positions: 19 | (16 + 3)
Number of Contacts: 16 | 3
Contact Ø (mm): 1 | 1.5
Nominal Current [A]: 8 | 10
Nominal Voltage [V~]: 100
Test Voltage (Breakdown Voltage) [V~]: 1500
Insulation Resistance [MΩ]: > 106
Max. Contact Resistance [mΩ]: 3S7.001.981.103
Insert 9-pole (8 + 1) 8 x 1 mm 1 x 2 mm Number of Positions: 9 (8 + 1)
Number of Contacts: 8 | 1
Contact-Ø (mm): 1 | 2
Nominal Current1) [A]: 8 | 20
Nominal Voltage2) [V~] degree of protection 33): 200
Test Voltage (Breakdown Voltage) 4) [V~]: 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.901.001
Crimp Pin 1 mm Machined 0.14 mm2 - 1.0 mm2 AWG 26 - AWG 17 S7.010.901.002
Crimp Socket 1 mm Machined 0.34 mm2 - 1 mm2 AWG 22 - AWG 17 S7.010.901.012
Crimp Socket 1 mm Machined 0.08mm2 - 0.56 mm2 AWG 28 - AWG 20 S7.010.901.021
Crimp Pin 1 mm Machined 0.75 - 1.5 mm2AWG 18 - AWG 16 S7.010.901.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2AWG 18 - AWG 16 S7.010.901.031
Crimp Pin 1mm Machined Contact 0.08 mm² - 0.56 mm² AWG 28 - AWG 20 S7.010.901.501
Crimp Pin 1.5 mm Machined 0.14 mm2- 1 mm2 AWG 26 - AWG 17 S7.010.901.502
Crimp Socket 1.5 mm Machined 0.56 - 1mm 2- 1 mm2 (AWG 20 - 17) S7.010.901.512
Crimp Socket 1.5 mm Machined 0.14 mm2- 0.56 mm2 AWG 26 - AWG 20 S7.010.902.001
Crimp Pin 2 mm Machined 0.75 mm2- 2.5 mm2 AWG 18 - AWG 14 S7.010.902.002
Crimp Socket 2 mm Machined 0.75 mm2- 2.5 mm2 AWG 18 - AWG 14
UR (Recognized Underwriters Laboratories)
UL approval UL (Listed Underwriters Laboratories)
