Sealcon #: S7.843.200.000
(housing only)
M16 Signal Panel Connector TWILOCK Rotatable 315° Elbow Panel, Male Thread
Cable Range: Flange .79" x .79" (20 x 20 mm) 4 holes Ø .11" (2.7 mm)
Material: Zinc Die Cast
Hummel: M16 right angle panel connector
Hummel #: 7.843.200.000
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Features
- Quick connecting style
- High protection rate
- Easy connection/disconnection even under tight space conditions
These Circular Connectors feature Quick Connect with Patented Polygon Lock, easy handling and exceptional functionality. Multi-functional TWILOCK Connectors are ideal with TWILOCK and Screw Connection.
TWILOCK has clearly defined Positioning and can be locked with slight rotation from OPEN to CLOSE. A special feature allows use of TWILOCK and screw connection. HUMMEL TWILOCK Connectors guarantee a quick connecting high cycle rate, high protection rate and easy connection/disconnection even under tight space conditions.
-
View Electrical Data
Twilock Ready

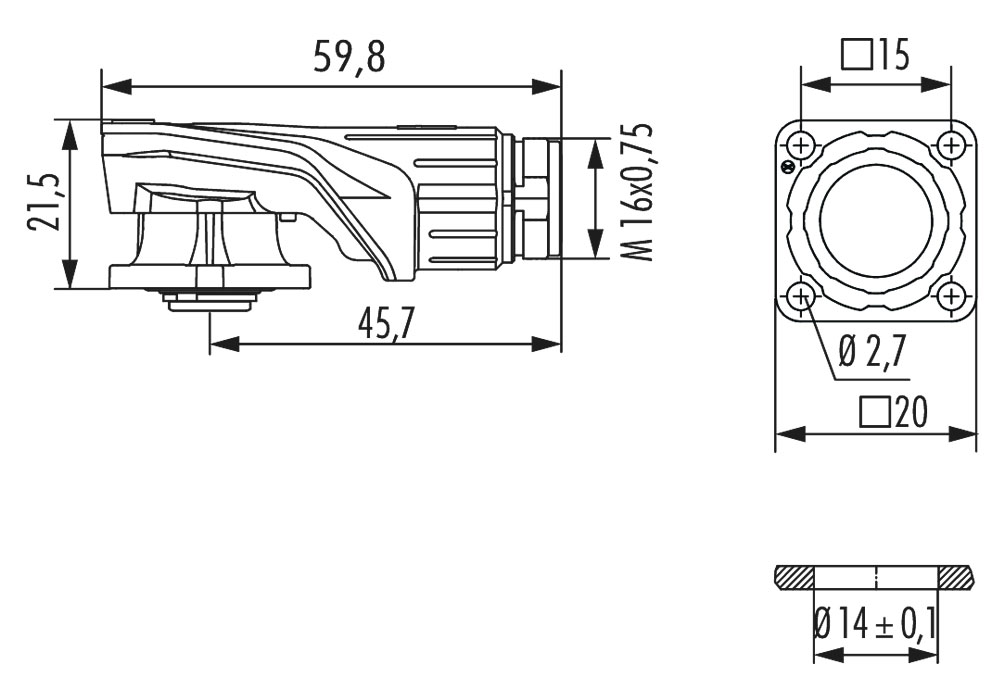

Housing type: Panel angled
Version: Right angled
Rotatable: 315 °
External thread (plug-in side): M16 × 0,75
Locking type: Screw, TWILOCK
Housing material: Zinc die cast
Housing surface: Blue passivated
Flange: 20 × 20 mm
Hole distance: 15 mm
Hole diameter: 4 × Ø 2,7 mm
Allen key / Torx: T10
Seals / O-Rings: FKM (FPM), NBR
Protection class: IP 67 / IP 69 K
Operating temperature: −40 °C to +125 °C INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.003.903.101
Insert 3-pole (3 x 1 mm) 3 x 1 mm Number of Positions: 3 (3 x 1 mm)
Number of Contacts: 3
Contact Ø (mm): 1
AWG [mm2]: 0.14 - 1
Nominal Current1) [A]: 8
Nominal Voltage2) [V~]: 400
Test Voltage (Breakdown Voltage) 3) [V~]: 2500
Insulation Resistance [MΩ]: >1010
Max. Contact Resistance [mΩ]: 3S7.003.903.102
Insert 3-pole (3 x 1 mm) 3 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-1
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 630
Nominal voltage ²)[V˜] 400
Test voltage (Breakdown voltage) ³) [V˜] 2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.983.101
Insert 3-pole (3 x 2 mm) Contact-Ø[mm] 2
AWG [mm²] 05,-2,5
Nominal current ¹)[A] 20
Nominal voltage ²)[V˜] 630
Nominal voltage ²)[V˜] 400
Test voltage (Breakdown voltage) ³) [V˜] 2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.983.102
Insert 3-pole (3 x 2 mm) 3 x 2 mm Contact-Ø[mm] 2
AWG [mm²] 05,-2,5
Nominal current ¹)[A] 20
Nominal voltage ²)[V˜] 630
Nominal voltage ²)[V˜] 400
Test voltage (Breakdown voltage) ³) [V˜] 2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.943.101
Insert 8-pole (4+3+PE) 4 x 0.8 mm / 4 x 1.6 mm Contact-Ø[mm] 0,8 / 1,6
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 320 / 630
Nominal voltage ²)[V˜] 160/320
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.943.102
Insert 8-pole (4+3+PE) 4 x 0.8 mm / 4 x 1.6 mm Contact-Ø[mm] 0,8 / 1,6
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 320 / 630
Nominal voltage ²)[V˜] 160/320
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.943.101
Insert 8-pole (4+3+PE) 4 x 0.8 mm / 4 x 1.6 mm Contact-Ø[mm] 0,8 / 1,6
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 320 / 630
Nominal voltage ²)[V˜] 160/320
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.943.102
Insert 8-pole (4+3+PE) 4 x 0.8 mm / 4 x 1.6 mm Contact-Ø[mm] 0,8 / 1,6
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 320 / 630
Nominal voltage ²)[V˜] 160/320
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.908.101
Insert 8-pole (4+3+PE 630V) 4 x 0.8 mm / 4 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 300 / 800
Nominal voltage ²)[V˜] 300 / 630
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.908.102
Insert 8-pole (4+3+PE 630V) 4 x 0.8 mm / 4 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 300 / 800
Nominal voltage ²)[V˜] 300 / 630
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.908.101
Insert 8-pole (4+3+PE 630V) 4 x 0.8 mm / 4 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 300 / 800
Nominal voltage ²)[V˜] 300 / 630
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.908.102
Insert 8-pole (4+3+PE 630V) 4 x 0.8 mm / 4 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,34-1,5
Nominal current ¹)[A] 5/16
Nominal voltage ²)[V˜] 300 / 800
Nominal voltage ²)[V˜] 300 / 630
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.961.101
Insert 6+PE 7 x 1.25 mm S7.003.961.102
Insert 6+PE 7 x 1.25 mm S7.053.961.101
Insert 6+PE 7 x 1.25 mm S7.053.961.102
Insert 6+PE 7 x 1.25 mm S7.003.910.101
Insert 10-pole 10 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-0,75
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 230
Nominal voltage ²)[V˜] 160
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.910.102
Insert 10-pole 10 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-0,75
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 230
Nominal voltage ²)[V˜] 160
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.910.101
Insert 10-pole 10 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-0,75
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 230
Nominal voltage ²)[V˜] 160
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.910.102
Insert 10-pole 10 x 1 mm Contact-Ø[mm] 1
AWG [mm²] 0,14-0,75
Nominal current ¹)[A] 8
Nominal voltage ²)[V˜] 230
Nominal voltage ²)[V˜] 160
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.985.101
Insert 15-Pole (12+3) 12 x 0.8 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,5-1,5
Nominal current ¹)[A] 3/10
Nominal voltage ²)[V˜] 60 / 160
Nominal voltage ²)[V˜] 24 / 60
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.985.102
Insert 15-Pole (12+3) 12 x 0.8 mm/3 x 1.25 mm Contact-Ø[mm] 0,8 / 1,25
AWG [mm²] 008,-0,34 0,5-1,5
Nominal current ¹)[A] 3/10
Nominal voltage ²)[V˜] 60 / 160
Nominal voltage ²)[V˜] 24 / 60
Test voltage (Breakdown voltage) ³) [V˜] 1500/2500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.988.101
Insert 18-Pole 18 x 0.8 mm Contact-Ø[mm] 0,8
AWG [mm²] 008,-0,34
Nominal current ¹)[A] 3
Nominal voltage ²)[V˜] 60
Nominal voltage ²)[V˜] 24
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.003.988.102
Insert 18-Pole 18 x 0.8 mm Contact-Ø[mm] 0,8
AWG [mm²] 008,-0,34
Nominal current ¹)[A] 3
Nominal voltage ²)[V˜] 60
Nominal voltage ²)[V˜] 24
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3S7.053.988.102
Insert 18-Pole 18 x 0.8 mm Contact-Ø[mm] 0,8
AWG [mm²] 008,-0,34
Nominal current ¹)[A] 3
Nominal voltage ²)[V˜] 60
Nominal voltage ²)[V˜] 24
Test voltage (Breakdown voltage) ³) [V˜] 1500
Insulation resistance [MΩ]>10
Max. contact resistance [mΩ] 3CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.901.001
Crimp Pin 1 mm Machined 0.14 mm2 - 1.0 mm2 AWG 26 - AWG 17 S7.010.901.002
Crimp Socket 1 mm Machined 0.34 mm2 - 1 mm2 AWG 22 - AWG 17 S7.010.901.012
Crimp Socket 1 mm Machined 0.08mm2 - 0.56 mm2 AWG 28 - AWG 20 S7.010.982.001
Crimp Pin 2 mm Machined 1 mm2 - 2.5 mm2 AWG 17 - AWG 14 S7.010.982.002
Crimp Socket 2 mm Machined 1 mm2 - 2.5 mm2 AWG 17 - AWG 14 S7.010.980.801
Crimp Pin 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.980.802
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.980.811
Crimp Pin 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.980.812
Crimp Socket 0.8 mm Machined 0.08 mm2 - 0.34 mm2 AWG 28 - AWG 22 S7.010.981.001
Crimp Pin 1 mm Machined 0.08 mm2 - 0.75 mm2AWG 28 - AWG 18 S7.010.981.002
Crimp Socket 1 mm Machined 0.08 mm2 - 0.75 mm2AWG 28 - AWG 18 S7.010.981.201
Crimp Pin 1.25 mm Machined 0.5 mm2 - 1.5 mm2 AWG 20 - AWG 16 S7.010.981.202
Crimp Socket 1.25 mm Machined 0.5 mm2 - 1.5 mm2 AWG 26 - AWG 16 S7.010.981.211
Crimp Pin 1.25 mm Machined 0.34mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.981.212
Crimp Socket 1.25 mm Machined 0.34mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.981.601
Crimp Pin 1.6mm, Machined 0.34 mm2 - 1.5 mm2 AWG 22 - AWG 16 S7.010.981.602
Crimp Socket 1.6 mm Machined 0.34 mm2 - 1.5 mm2 AWG 22 - AWG 16
CSA approval CSA (Canadian Standard Association)
UL approval UL (Listed Underwriters Laboratories)
