Harsh Environment? How PVDF Stands Up to Stress

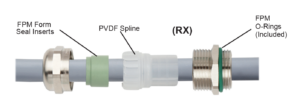

When industrial electrical installations face aggressive chemicals, extreme thermal fluctuations, or demanding washdown procedures, standard nylon fittings often fall short. Electrical components in these environments require nickel plated brass glands with PVDF splines that are engineered to maintain structural integrity under severe stress.

PVDF (Polyvinylidene Fluoride) offers an advanced engineering polymer alternative designed to deliver exceptional protection where standard materials degrade.

Uncompromised Chemical & Thermal Resistance

PVDF strain relief fittings provide high performance across demanding chemical and industrial processing applications. Key properties include:

• Corrosion Resistance: Highly resistant to aggressive agents, including weak acids, alkalis, alcohols, esters, ketones, ethers, gasoline, as well as mineral, animal, and vegetable oils.
• Thermal Endurance: Operates reliably across high and low temperature extremes, outlasting standard plastics without cracking or warping.
• Flame & Safety Ratings: Rated UL 94 V-0 for flame retardancy, formulated from halogen- and phosphorous-free non-corrosive materials.

For maximum assembly strength and mechanical stability, pair PVDF fittings with nickel-plated brass or nylon locking nuts.

Patented Sealing & Mechanical Cable Protection

Industrial cable entry points must prevent liquid ingress while protecting conductors from mechanical wear, strain, and vibration-induced loosening over time.

1. Submersible Environmental Sealing: Engineered with a patented form seal, these fittings achieve submersible NEMA 4X and NEMA 6 (IP68 / IP69K) ingress protection, holding liquid-tight pressure integrity up to 150 PSIG (10 BAR).
2. Concentric Strain Relief: The precision self-locking ACME thread on the dome cap works in tandem with overlapping splines. As tightened, the splines apply a uniform, 360-degree concentric compression force around the internal form seal. This prevents seal displacement and ensures high pull-out protection without pinching or damaging the cable jacket.
3. Anti-Vibration Ratchet Mechanisms: An integrated internal ratchet mechanism prevents the dome nut from backing off under heavy equipment vibration.
4. Flex Nut Options: To protect cables against harsh bend radiuses, flex-top options eliminate chafing and kinking at the enclosure entry point.

Versatile Thread Standards & Modular Design

To fit global equipment specifications, PVDF cable glands are available across standard international thread configurations, including NPT, PG, and Metric.

Furthermore, their modular design simplifies inventory and installation. Field technicians can easily adjust for varying cable diameters ranging from 0.08″ (2 mm) to 1.38″ (35 mm) by swapping standard and reduced rubber inserts within the same fitting body.

Whether managing washdown lines in chemical processing facilities or rugged outdoor automation cabinets, PVDF strain relief fittings deliver long-term reliability and complete ingress protection.
